Creating digital circuits has never been easier. Gone are the days of hundreds of wires and discrete logic gates on a breadboard. Thanks to FPGAs, you can now stuff your entire circuit into a single chip. Read on to learn how they work and how you can create your own complex digital circuits with relative ease.
Our partners at Alchitry teach the basics of digital electronics and FPGAs.
FPGA stands for Field Programmable Gate Array, which isn’t helpful in understanding what they are or do but we had to get that out of the way. FPGAs are a class of devices known as programmable logic (sometimes called programmable hardware). An FPGA itself is an integrated circuit that is "field-programmable" — meaning that it is configured by the consumer after being manufactured.
An FPGA device on its own doesn’t do anything, however, an FPGA can be configured to do just about anything. The true benefit of FPGAs are that nothing physically changes with configuration - all the changes are done digitally. Essentially, you are using text-based operations to create hardware interactions. These configurations are RAM-based, so they can be reconfigured many times over. In the FPGA world, we call these configurations digital circuits.
Maybe a better question is, "Should I choose to use a microprocessor or create a custom digital circuit design with an FPGA device?"
Programming languages like Arduino or Python are used a lot, and resources are easy to find and understand. The same isn't quite true for how to create designs for FPGAs. Writing traditional code is often easier to create complex behavior and to change how something is implemented. On the flip side, FPGAs benefit from being implemented to be far more efficient in processing time and precise timing. While traditional programming executes operations in a sequence (one operation after another), FPGAs executes operations with parallelization (multiple operations at once).
A very high level example is writing a simple loop that turns an LED on after pressing a button. With a traditional microcontroller, the processer implements the code by consecutively reading the state of the pin then updating the state of another pin based off the state of the button. An FPGA cuts out the need to check pin statuses and the processor power those checks require - an FPGA simply connects the button and the LED as a dedicated digital circuit.
Due to the simplicity of the code in this example, very little processing power is used, so you probably wouldn't notice the end result being any different between a traditional microcontroller and using FPGA. However, the more complex your code is, the more processor power it consumes as it sequentially makes its way through all the checks and balances of your operations. This is where FPGAs shine. Since operations run in parallel, those operations can all happen simultaneously. FPGA is like having many hands to fetch a single item concurrently as opposed to one hand to fetch the same amount of items one after another.
Still with us? Ok, great. Way back in 2013, a SparkFun engineer wrote a blog - So you want to learn FPGAs? - that outlines some of the struggles he encountered as a very experienced programmer trying to use FPGAs. It's a good read, and the comments lend some insight as well.

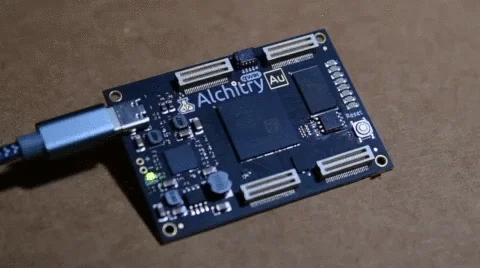

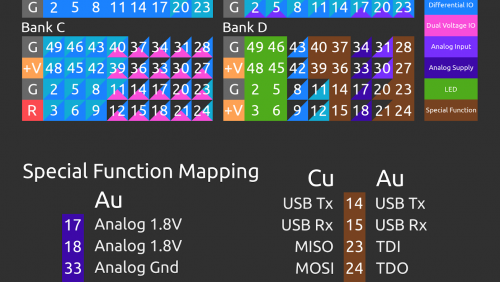

The good news is that the FPGA barrier of entry has shrunk, and SparkFun has partnered with the experts at Alchitry to lend a helping hand. If we've piqued your interest, we recommend the following "How Does an FPGA Work?" tutorial, and the subsequent geting started tutorials to get your feet wet.
Now that you’re familiar with the basic ideas behind FPGAs, it’s time to start working with them. We’ve put together a guide to programming, as well as a great introductory FPGS project to get you started.
