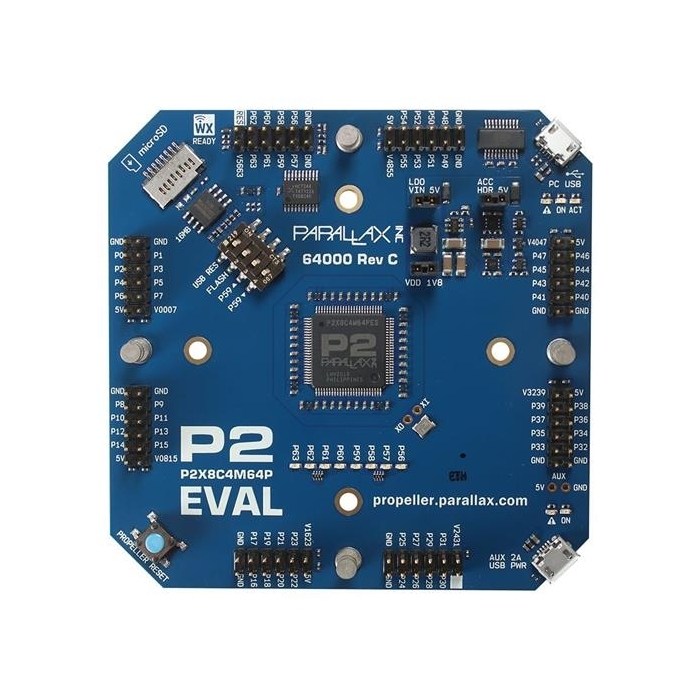

Parallax Propeller 2 Evaluation Board (Rev C)

Product Overview

Parallax Propeller 2 Evaluation Board (Rev C) is designed for experimentation and characterization of the Propeller 2 multicore microcontroller (engineering sample Rev C, production approved silicon). This evaluation board includes power enable and breakout headers, multiple ground points, and power supplies for simpler testing and interfacing with the standard test equipment. The PCB is organized to keep each subsystem clearly defined in groups and spaced well apart making room for test probes to be attached. This evaluation board incorporates eight I/O pin breakout Edge headers that accommodate the 2×6 pass-through headers on eight different accessory add-ons. The Propeller 2 evaluation board features selectable boot mode, 16MB SPI flash memory, and buffered LEDs on the eight I/O pins.
