We'd love to say our Thing Plus boards come in all shapes and size; but they don't. Instead they come in the same form factor all with different specifications and peripherals to meet a robust variety of needs.
What Is A Thing Plus Board?
Consistent Footprint
Commonly known as the Feather footprint, Thing Plus boards are 2.3" x .9" (58.42mm x 22.86mm). This small form factor is compatible with many of the shields on the market today.
Qwiic Connectors
Each of our Thing Plus boards has a 3.3 V Qwiic Connector to quickly interface with development boards, sensors, LCDs, relays, and more over I2C.
Abundant Options
There's a Thing for everyone. From Raspberry Pi's new RP2350 to the trusty ESP32, we have over a dozen options to suit your project's needs.
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
The USB-C variant of ESP32 Thing Plus is a development board with an added MicroSD and a new voltage regulator to operate with a lower power draw.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| WiFi, Bluetooth | 240 MHz | 128Mb/16MB (external) | 520kB SRAM | USB-C | Dual-core Tensilica LX6 |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
The SparkFun ESP32 Thing Plus is the next step to get started with Espressif IoT ideations while still enjoying all the amenities of the ESP32 Thing Plus.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| WiFi, Bluetooth | 240 MHz | 128Mb/16MB (external) | 520kB SRAM | Micro-B USB | Dual-core Tensilica LX6 |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
The SparkFun ESP32 Thing Plus with U.FL allows you to get started with Espressif IoT ideations while still enjoying all the amenities of the ESP32 Thing.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| WiFi, Bluetooth | 240 MHz | 128Mb/16MB (external) | 520kB SRAM | Micro-B USB | Dual-core Tensilica LX6 |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
Break into the 5GHz spectrum with this Feather-compatible board featuring the ESP32-C5 with Dual-Band WiFi 6, Bluetooth 5, 8MB Flash, and 8MB PSRAM.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| 2.4GHz & 5GHz WiFi 6, Bluetooth® 5 LE, Zigbee & Thread, and Matter | 240 MHz | 8MB | 8MB PSRAM | USB-C | 32-bit RISC-V single-core |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
Control your IoT projects with the ESP32-C6. This Feather-compatible board features a RISC-V processor, WiFi 6, Bluetooth 5, Zigbee, and Thread connectivity.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| 2.4GHz WiFi 6 and Bluetooth® 5 LE | 160 MHz | 16MB | 512KB HP SRAM / 16KB LP SRAM | USB-C | 32-bit RISC-V single-core |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
The SparkFun ESP32-S3 Thing Plus adds a powerful and versatile IoT development platform to the Feather-footprint Thing Plus line.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| 2.4GHz WiFi 6 and Bluetooth® 5 LE | 240 MHz | 4MB | 2MB PSRAM | USB-C | Xtensa® Dual-Core 32-bit LX7 |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
The SparkFun ESP32-S2 WROOM Thing Plus is a highly-integrated, Feather form-factor development board equipped with the 2.4 GHz WiFi SoC.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| WiFi | 240 MHz | 4MB embedded SPI | 320kB SRAM | USB-C | Xtensa® Single-Core 32-bit LX7 |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
With a 32-bit ARM® Cortex®-M4 RISC core, the SparkFun STM32 Thing Plus brings power and precision to your projects.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
No |
168 MHz | 1MB | 192kB | USB-C | ARM Cortex-M4 |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

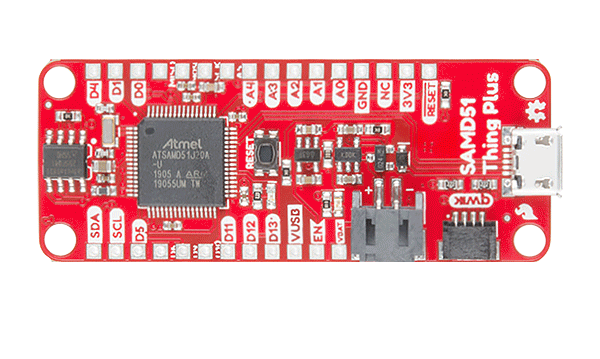

With a 32-bit ARM Cortex-M4F MCU, the SparkFun SAMD51 Thing Plus is one of our most powerful microcontroller boards yet!
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
No |
120MHz | 1MB | 256kB SRAM | Micro-B USB | ARM Cortex-M4F |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
The SparkFun Artemis Thing Plus takes our popular Feather footprint and adds in the powerful Artemis module for ultimate functionality.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| Bluetooth | 48MHz (96 capable) | 1MB | 384kB RAM | USB-C | ARM Cortex-M4F |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
The SparkFun RP2350 Thing Plus is a powerful wireless IoT board featuring the selectable-core RP2350, WiFi 4, Bluetooth 5.2, LiPo battery charging, and a Qwiic connector.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| WiFi 4, Bluetooth® 5.2, BDR (1 Mbps), EDR (2 or 3 Mbps) | 150 MHz | 16MB (external) | 520kB SRAM, 8MB PSRAM | USB-C | Dual ARM® Cortex®-M3 and Hazard3 RISC-V |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
A low-cost, high performance board with flexible digital interfaces featuring the Raspberry Pi Foundation's RP2040.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
No |
133 MHz | 128Mb/16MB (external) | 264kB SRAM | USB-C | ARM Cortex-M0+ |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
The first easily accessible board of its kind that combines Matter and SparkFun’s Qwiic ecosystem for agile development and prototyping of Matter-based IoT devices.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| Bluetooth® 5.3, Matter, Thread, Multiple 802.15.4 Protocols | 39 MHz | 1536kB | 256kB | USB-C | EFR32MG24 Wireless SoC & ARM-M33 Core |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
The XBee3 Thing Plus is an ultra-capable and easy way for getting into wireless device development with a chip antenna.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| WiFi | 2.4 GHz | 1MB | 128kB | Micro-B USB | Silicon Labs EFR32MG SoC |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
The XBee3 Thing Plus is an ultra-capable and easy way for getting into wireless device development with a U.FL connector.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| WiFi | 2.4 GHz | 1MB | 128kB | Micro-B USB | Silicon Labs EFR32MG SoC |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
Equipped with the u-blox NINA-B306 module which features the Nordic Semiconductor nRF52840 integrated Bluetooth® Low Energy (BLE 5.0) communication microcontroller.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| Bluetooth® 5.0 LE | 64 MHz | 1MB | 250kB | USB-C | Arm® Cortex®-M4 processor |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
-
SparkFun Thing Plus - NORA-W306
Special Price Current price: $19.95 Regular Price Original price: $39.95In stock
An integrated single-chip low-power dual-band wireless LAN and BLE 5.3 communication microcontroller with the ability to depower all subsystems to conserve as much power as possible.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| WiFi 802.11a/b/g/n (2.4GHz / 5GHz), Bluetooth® 5.3 LE | Up to 200MHz M33 (Main Core), 20 MHz M23 (Low Power Core) | 4MB | 250kB | USB-C | Arm® Cortex®-M4 processor |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
The SparkFun expLoRaBLE Thing Plus is a Feather form-factor development board with the NM180100 system in package (SiP), from Northern Mechatronics.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| Bluetooth, LoRa | 96 MHz | 1MB on-chip | 384kB | USB-C | Ambiq Apollo3 |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
-
SparkFun AzureWave Thing Plus - AW-CU488
Special Price Current price: $28.50 Regular Price Original price: $49.95In stock
The SparkFun AzureWave Thing Plus is equipped with the AW-CU488 module which features the Realtek RTL8721DM integrated single-chip low-power dual-band wireless LAN communication controller.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| WiFi (2.4GHz / 5GHz) | Up to 200MHz | 32Mbit SPI | 512KB SRAM and 4MB PSRAM | USB-C | ARMv8-M, Cortex-M33 & Cortex-M23 |
This is a carousel. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
-
SparkFun Thing Plus - RA6M5
Special Price Current price: $19.95 Regular Price Original price: $49.95In stock
Clocking in at 200MHz, the SparkFun RA6M5 Thing+ is a high-performance development board ideal for real-time applications.
| Wireless | Frequency | Flash | RAM | Connector | Processor |
|---|---|---|---|---|---|
| Bluetooth® Low Energy | 200MHz | 2MB code/8kB data (built-in) / 16 MB/128Mb QSPI (on board) | 512KB SRAM | USB-C | ARMv8-M, Cortex-M33 & Cortex-M23 |
SparkFun Qwiic Shield for Thing Plus
The SparkFun Qwiic Shield for Thing Plus makes it so you can use SparkFun's Qwiic Connect System with development boards that use the Feather footprint.
