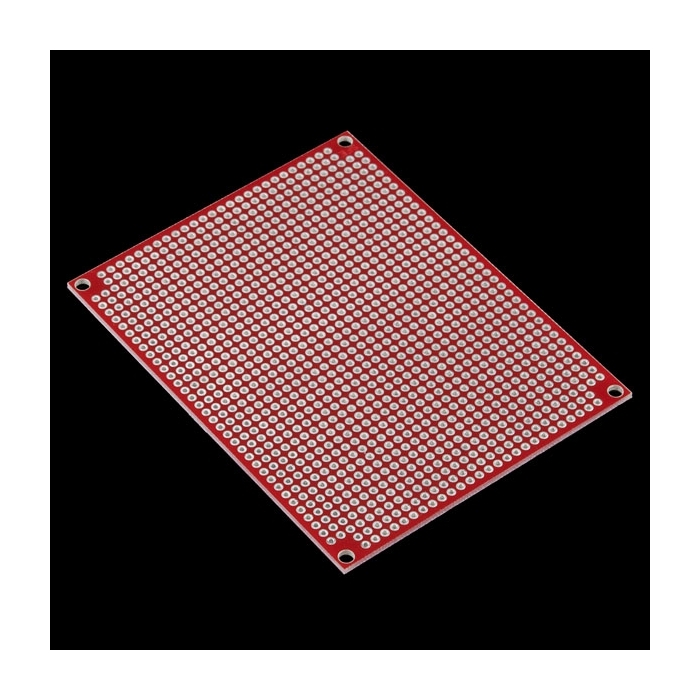

ProtoBoard - Wombat (PTH)

Product Overview

An empty canvas for electrical enthusiasts! Designed to fit the SFE project enclosures this project board gives you 8x10cm (3.15x3.94") of building space for through-hole components with 2.54mm (100mil) spaced holes. This is not your normal perf board! This board is much higher quality with plated-through-holes and annular rings that will not lift off the PCB under normal soldering conditions.

The marsupial naming convention is what happens when you let Engineers into a Marketing meeting. They looked so happy, we just couldn't tell them no. Wombat is the board with nothing but PTH prototyping pads.

Check out our Unregulated Power Supply Tutorial!

Dimensions: 8x10cm (3.15x3.94")

Documents:

• GitHub (Design Files)
