SparkFun SSOP to DIP Adapter - 8-Pin
BOB-00497
SparkFun SSOP to DIP Adapter - 8-Pin
SKU: BOB-00497
$3.50
In stock
SKU
BOB-00497
Helpful Documentation
SchematicProduct Overview

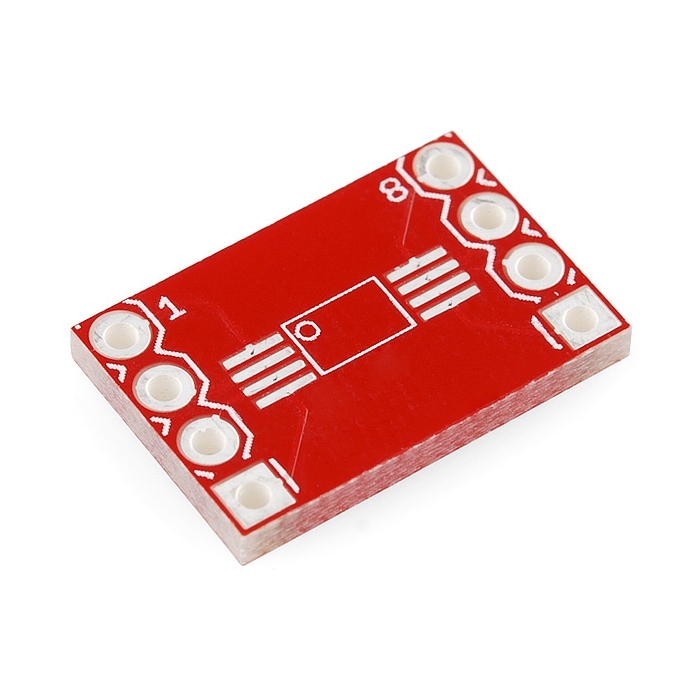

8-Pin SSOP to DIP break out board. The footprint was rotated to accommodate different width SSOP devices and can be used with 8 pin SSOPs. Designed to be used with 0.65mm pitch devices but can also be used with 0.025" pitch devices (comes out to ~0.635mm). We've made these 0.635mm devices fit just fine. Can be used with packages from 0.200" (5mm) up to 0.450" (11.4mm) in width.
40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SSOP .65mm and can accommodate .635mm pitch devices.
Hookup Accessories
Features & Specs
- 8-pin: 0.6 x 0.4" (15.24 x 10.16mm) 500mil DIP spacing
- 16-pin: 1.0 x 0.4" (25.4 x 10.16mm) 400mil DIP spacing
- 20-pin: 0.8 x 1.0" (20.32 x 25.4mm) 700mil DIP spacing
- 28-pin: 1.4 x 0.7" (35.56 x 17.78mm) 600mil DIP spacing.
Documentation
- Schematic
- Eagle Files
- GitHub (Design Files)
Customer Reviews
SparkFun SSOP to DIP Adapter - 8-Pin
$3.50
BOB-00497
Stock and Customer Discounts
$3.5 retail price.
Available Discounts
- $3.33 | 10+ units
- $3.15 | 25+ units
- $2.98 | 100+ units
