SparkFun USB-C Breakout - Horizontal (with Headers)
BOB-16998

SparkFun USB-C Breakout - Horizontal (with Headers)

SKU: BOB-16998
$4.95
In stock
SKU
BOB-16998
In stock
Stock/Discounts

The SparkFun USB-C Breakout supplies up to 3 times the power as previous USB board while breaking out each pin on the connector with any SMD soldering.

Product Overview

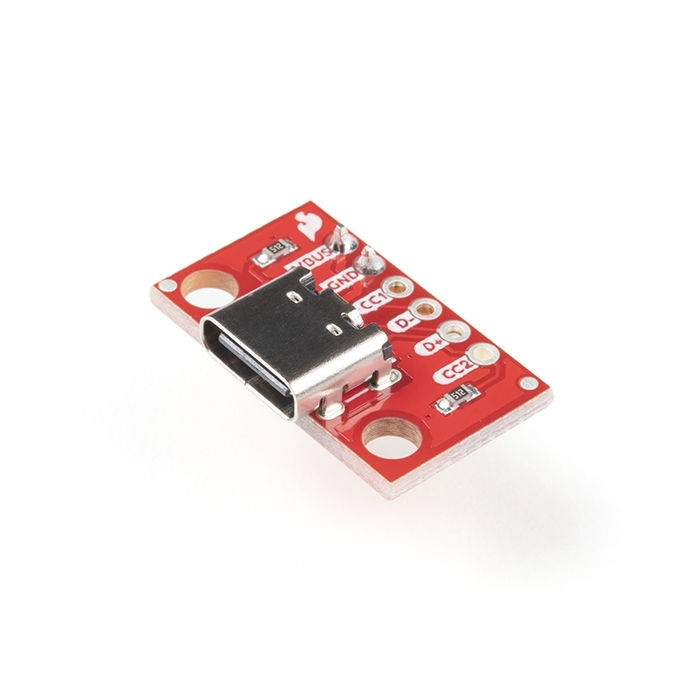

With this USB breakout, you can incorporate a USB-C connector into your projects without needing to solder each tiny SMD pad. The SparkFun USB-C Breakout supplies up to three times the power as previous USB iterations. Also, it solves the universally frustrating dilemma of plugging a USB cable in correctly because it's reversible!

This board breaks out the USB-C connector's VBUS, GND, CC1, CC2, D+, and D- pins into a 0.1" pitch header (to VBUS and GND) while providing up to a nominal 1.5A of power and up to 3A, depending on the upstream device.

Hookup Accessories

Features & Specs

  • Connector: USB Type-C
  • Dimensions: 22.1mm x 14mm x 4.9mm (0.87in x 0.55in x 0.19in)
  • Weight: 1.35g

Customer Reviews

SparkFun USB-C Breakout - Horizontal (with Headers)
SparkFun USB-C Breakout - Horizontal (with Headers)
$4.95
BOB-16998

Stock and Customer Discounts

$4.95 retail price.

Available Discounts

  • $4.70 | 10+ units
  • $4.46 | 25+ units
  • $4.21 | 100+ units

Looking for even larger quantities?

Get in touch for Volume Pricing
