Female Header - 10x1 (SMD)
PRT-27911

Female Header - 10x1 (SMD)

SKU: PRT-27911
$0.80
In stock
SKU
PRT-27911
In stock
Stock/Discounts

These are standard 0.1" spaced header pins that can be surface mounted for applications where through-hole pins won't work.

Helpful Documentation

Product Overview

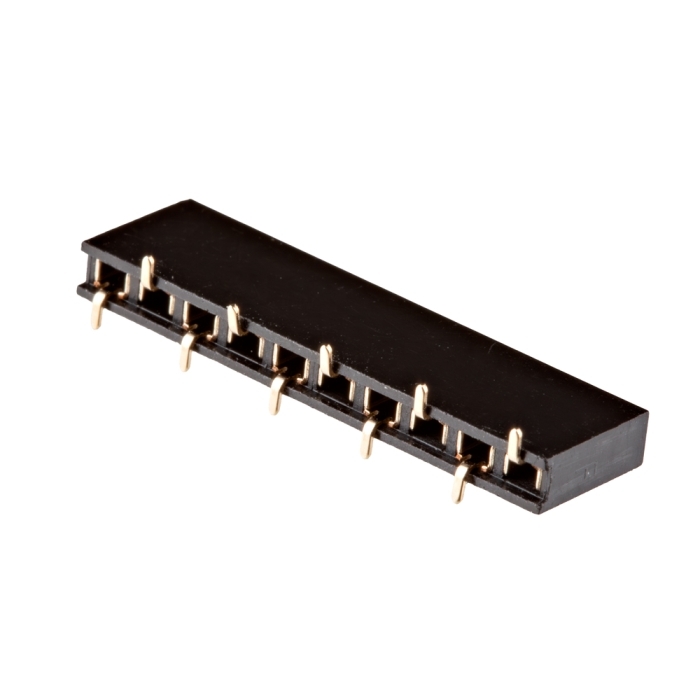

These are standard 0.1" spaced header pins that can be surface mounted for applications where through-hole pins won't work. The surface mount side of the legs are staggered for stress relief.

This is a 10-Pin female header.

Hookup Accessories

Features & Specs

  • Contact Type: Female
  • Number of Positions: 10
  • Pitch - Mating: 0.100" (2.54mm)
  • Mounting Type: Surface Mount
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Finish - Mating: Gold
  • Operating Temperature: -40°C ~ 105°C
  • Material Flammability Rating: UL94 V-0
  • Contact Finish - Post: Gold
  • Current Rating (Amps): 3A
  • Voltage Rating: 250V

Documentation

Customer Reviews

Female Header - 10x1 (SMD)
Female Header - 10x1 (SMD)
$0.80
PRT-27911

Stock and Customer Discounts

$0.8 retail price.

Available Discounts

  • $0.76 | 10+ units
  • $0.72 | 25+ units
  • $0.68 | 100+ units

Looking for even larger quantities?

Get in touch for Volume Pricing
