Female Header - 8-pin (SMD, 0.1in)
PRT-21471

Female Header - 8-pin (SMD, 0.1in)

SKU: PRT-21471
$0.75
In stock
SKU
PRT-21471
In stock
Stock/Discounts

These are standard 0.1" spaced header pins that can be surface mounted for applications where through-hole pins won't work.

Product Overview

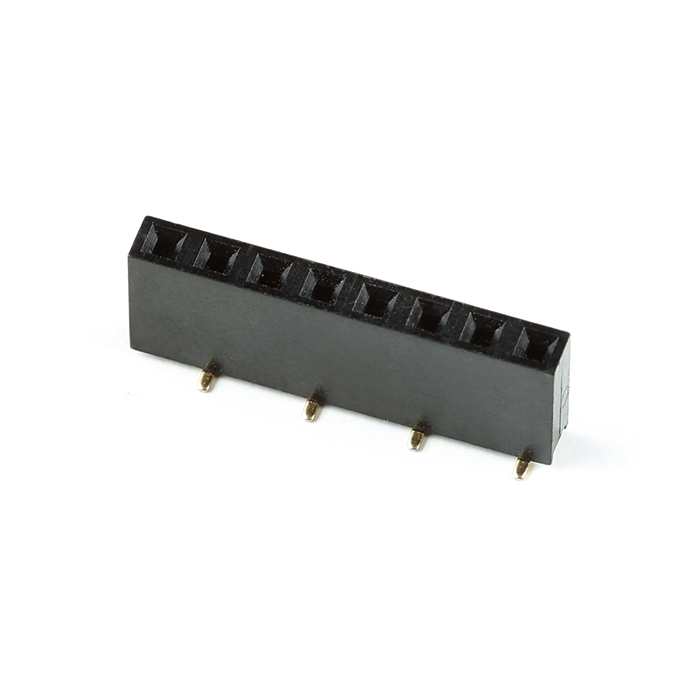

These are standard 0.1" spaced header pins that can be surface mounted for applications where through-hole pins won't work. The surface mount side of the legs are staggered for stress relief.

This is a 8-Pin female header.

Features & Specs

  • Number of Positions: 8
  • Number of Positions Loaded: All
  • Pitch - Mating: 0.100" (2.54mm)
  • Mounting Type: Surface Mount
  • Fastening Type: Push-Pull
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: Flash
  • Insulation Color: Black
  • Insulation Height: 0.280" (7.10mm)
  • Operating Temperature: -40°C ~ 105°C
  • Material Flammability Rating: UL94 V-0
  • Contact Finish - Post: Gold
  • Current Rating (Amps): 3A
  • Voltage Rating: 250V
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Contact Shape: Square
  • Contact Material: Phosphor Bronze
  • Model #: NPPC081KFXC-RC
