A rugged 10-way 3.5mm-pitch PCB terminal block & 3.5mm-pitch rising clamp screw socket.

Product Overview

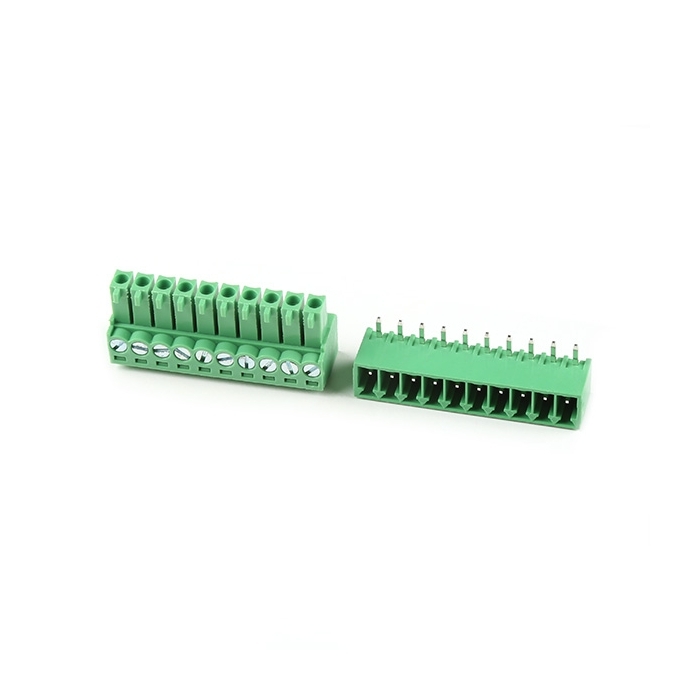

This is a rugged 10-way 3.5mm-pitch PCB terminal block & 3.5mm-pitch rising clamp screw socket. Ideal for robust I/O and power connections when paired together.

Includes:

  • 1x 10-way 3.5mm Rising Clamp Screw Socket
  • 1x 10-way 3.5mm 90° Terminal Block

Hookup Accessories

Features & Specs

10-way 3.5mm 90° Terminal Block:

  • 10-way
  • 3.5mm pitch
  • Current Rating: 12 Amp/Way Max.
  • Voltage Rating: 300V AC
  • Withstand Voltage: 2500V AC for 1 minute
  • Operation Temperature: -40°C ~ +105°C
  • Soldering Reliability: 250°C +/- 10°C
  • 5 Seconds Max.
  • Insulator Body: Polyamide+G.F.(UL94V-0), Green
  • Solder Pin: Copper Alloy, Tin Plated
  • RoHS Compliant

10-way 3.5mm Rising Clamp Screw Socket:

  • 10-way
  • 3.5mm pitch
  • Voltage Rating: 300V AC
  • Current Rating: 12 Amp/Way Max.
  • Withstand Voltage: 2500V AC for 1 minute
  • Wire Range: 16 ~ 24 AWG
  • Operation Temperature: -40°C ~ +105°C
  • Insulator Body: Polyamide+G.F.(UL94V-0), Green
  • Contact: Copper Alloy, Tin Plated
  • Terminal Screw: Steel, Galvanized With Cr3+ Plated
  • RoHS Compliant
