Product Overview

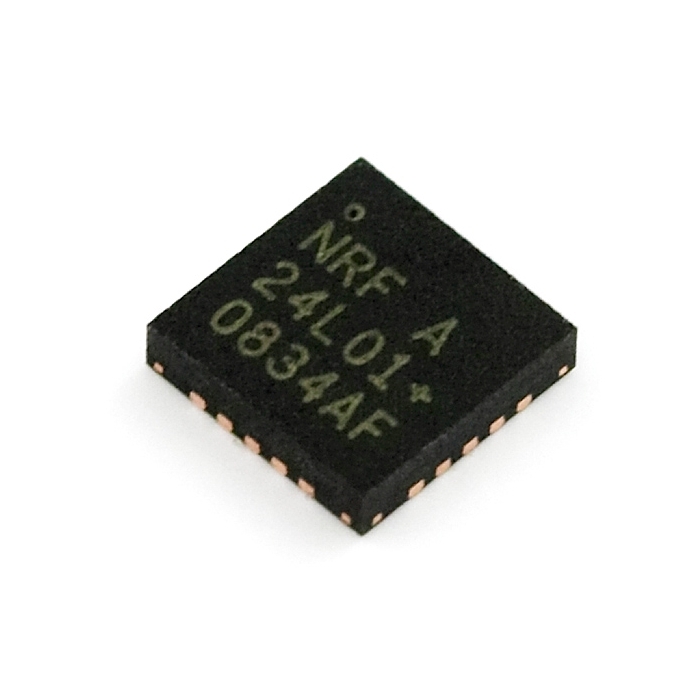

Nordic Semiconductor nRF24L01+. Transceiver chip operating in the 2.4GHz band. Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature - very nice! The improved '+' version of the nRF24L01 includes more features and better range!
Features:
- Drop in compatible with nRF24L01
- 1.9V-3.6V supply
- 2Mbit data rate
- New long range 250kbit option
- Auto acknowledge
- Auto re-transmit
- Multiceiver - 6 data pipes
- 32 byte separate TX and RX FIFOs
- 5V tolerant input pins
- Software selectable channel from 2400MHz to 2525MHz (125 Selectable channels)
- Minimum number of external components
- Lots of application notes and support on Nordic Semiconductor Website
- Works well with the 16MHz SMD Crystal
