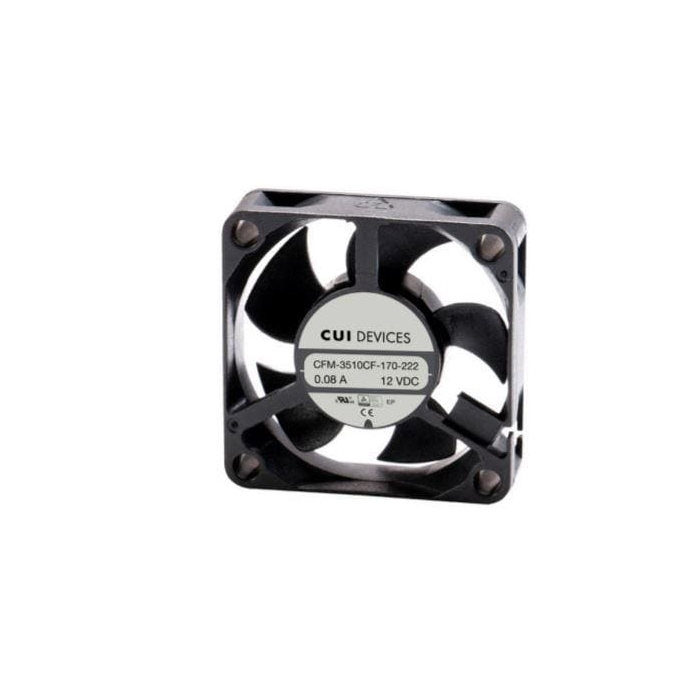

35mm x 35mm DC Axial Fan - 12 Vdc, omniCOOL, 9000 RPM
The series is offered with dual ball-bearing construction or an innovative omniCOOL™ system that delivers improved performance and longer operational life.
Product Overview
CUI Devices CFM-35 35mm x 35mm DC Axial Fans feature airflows up to 5.90CFM and rated speeds from 6000RPM to 9000RPM. The series is offered with dual ball-bearing construction or an innovative omniCOOL™ system that delivers improved performance and longer operational life. The fans have a rated voltage of 12VDC and an operating temperature range from -10°C to +70°C. They are RoHS and REACH compliant, and a tachometer signal option is available. CUI Devices CFM-35 35mm x 35mm DC Axial Fans offer an ideal thermal management solution for IT and telecommunications equipment, medical devices, and industrial applications.
Features & Specs
- Height: 10.3 mm
- Width: 35 mm
- Length: 35 mm
- Operating Supply Voltage: 12 VDC
- Airflow: 5.9 CFM
- Speed: 9000 RPM
- Noise: 27.7 dBA
- Power Rating: 1.44 W
- Housing Material: Polybutylene Terephthalate (PBT)
- Termination Style: Wire Leads
- Brand: CUI Devices
- Current Type: DC
- Frame Dimensions - mm: 35 mm L x 35 mm W x 10.3 mm H
- Lead Length: 300 mm
- Life: 40000 Hours
- Pressure Type: 0.17 in H2O
Documentation
Customer Reviews
Stock and Customer Discounts
Available Discounts
- $8.50 | 25+ units
- $8.06 | 100+ units
