This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Analog Devices Inc. AD8235 40μA Micropower Instrumentation Amplifier
COM-20046

Analog Devices Inc. AD8235 40μA Micropower Instrumentation Amplifier

SKU: COM-20046

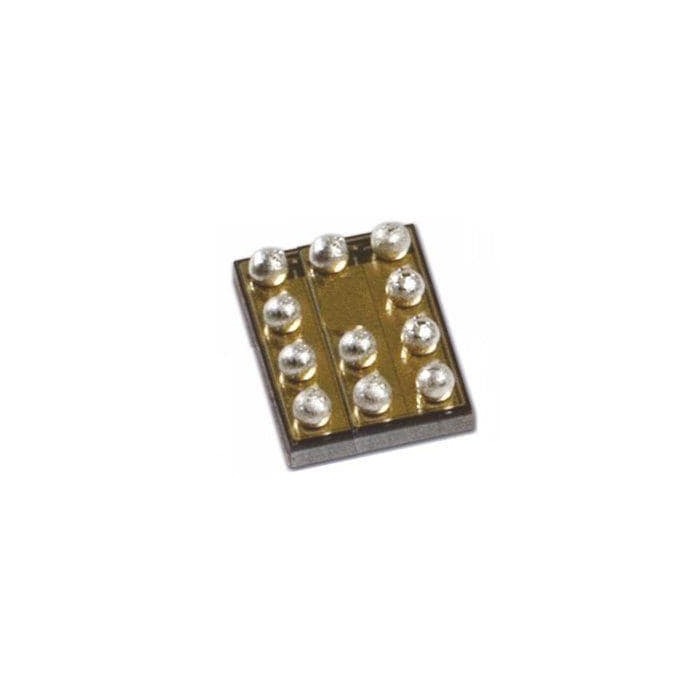

Analog Devices Inc. AD8235 40μA Micropower Instrumentation Amplifier is available in a 1.5mm × 2.2mm wafer level chip scale package (WLCSP).

Out of stock
SKU
COM-20046
Compare

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Product Overview

Analog Devices Inc. AD8235 40μA Micropower Instrumentation Amplifier is available in a 1.5mm × 2.2mm wafer level chip scale package (WLCSP). The AD8235 draws a maximum quiescent current of 40μA. It also draws a maximum 500nA of current during shutdown mode. This makes it an excellent instrumentation amplifier for battery-powered, portable applications.

Features & Specs

  • Low power
  • 40μA maximum supply current
  • 6nA shutdown current
  • Low input currents
  • 50pA input bias current
  • 25pA input offset current
  • High Common Mode Rejection Ratio (CMRR)
  • 110dB CMRR , G = 100
  • Space-saving
  • WLCSP package
  • Zero input crossover distortion
  • Versatile
  • Rail-to-rail input and output
  • Shutdown
  • Gain set with a single resistor (G = 5 to 200)
  • AD8236, μSOIC package version of AD8235

Documentation

WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov

Customer Reviews

Trustpilot
Analog Devices Inc. AD8235 40μA Micropower Instrumentation Amplifier
Analog Devices Inc. AD8235 40μA Micropower Instrumentation Amplifier COM-20046
$5.95 retail price.

Available Discounts

  • $5.65 | 25+ units
  • $5.36 | 100+ units
