Arduino MKR IoT Carrier Board is designed for IoT applications and MKR hobbyists.
Product Overview

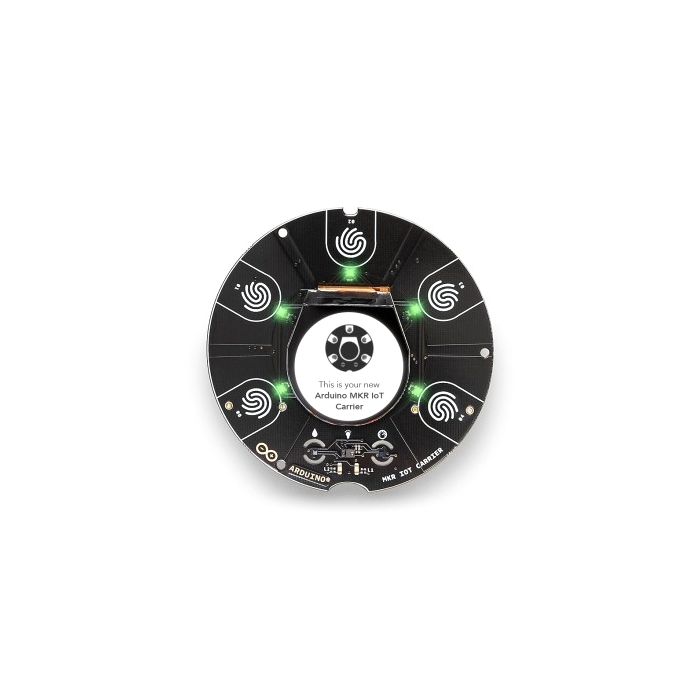

Arduino MKR IoT Carrier Board is designed for IoT applications and MKR hobbyists. The Arduino MKR IoT Carrier Board features integrated sensors, circuits, and display. The Board is passive and requires an MKR board to function.
Features & Specs
- Arduino Part #: ABX0047
- Groove Connectors
- Easy interface with wide range of Groove modules and sensors
- 2x analog sensor input
- 1x I2C interface
- ST LSM6DSOX 6-axis IMU Sensor
- 3-axis accelerometer 2/±4/±8/±16g full scale
- 3-axis gyroscope 125/±250/±500/±1000/±2000dps (degrees per second)
- I2C interface to Arduino MKR board
- Low power consumption (0.55mA max)
- Rounded 1.3” TFT display
- 240 x 240 resolution
- 36 x 40mm
- ST HTS221 Humidity sensor
- Capacitive sensing
- 0-100% humidity sensing range
- Humidity accuracy of ± 3.5% rH, 20 to +80% rH
- Temperature accuracy of ± 0.5°C,15 to +40°C
- I2C interface to Arduino MKR board
- Low power consumption (2μA @ 1Hz sampling rate)
- Broadcom APDS-9660 RGB and gesture sensor
- Ambient light and RGB Colour Sensing
- Proximity Sensing
- Gesture Detection
- UV/IR Blocking Filter
- I2C interface to Arduino MKR board
- ST LPS22HBTR Pressure sensor
- 260 to 1260hPa (0.25 to 1.24atm) absolute pressure range
- I2C interface to Arduino MKR board
- Relays
- 2x KEMET EE2-5NU-L relays
- 5V Coil voltage
- 2A Current
- 220V DC, 250V AC
- Non-latching
- Common, normally open and normally closed contacts
- LED Status Indicator
- Peripherals
- 5x Capacitive buttons
- Buzzer
- 5x Digital RGB LEDs
- Rounded OLED 1.3” Display
- 5x Capacitive qTouch buttons
- Memory
- SD Card slot
- Power
- LI-ION 18650 3.7V battery holder
- USB Battery charging via MKR Board (Runs up to 48h with a 3.7V 2500mAh)
- I/O
- All sensors feature wake up function
- 2x Analog Grove connectors
- 1x I2C Grove connector
- 2x relay connector
- Safety information
- Class A
