Arduino Portenta Machine Control
DEV-18402
Arduino Portenta Machine Control
SKU: DEV-18402
Out of stock
SKU
DEV-18402
Arduino Portenta Machine Control adds Industrial IoT capabilities to standalone industrial machinery.
Product Overview

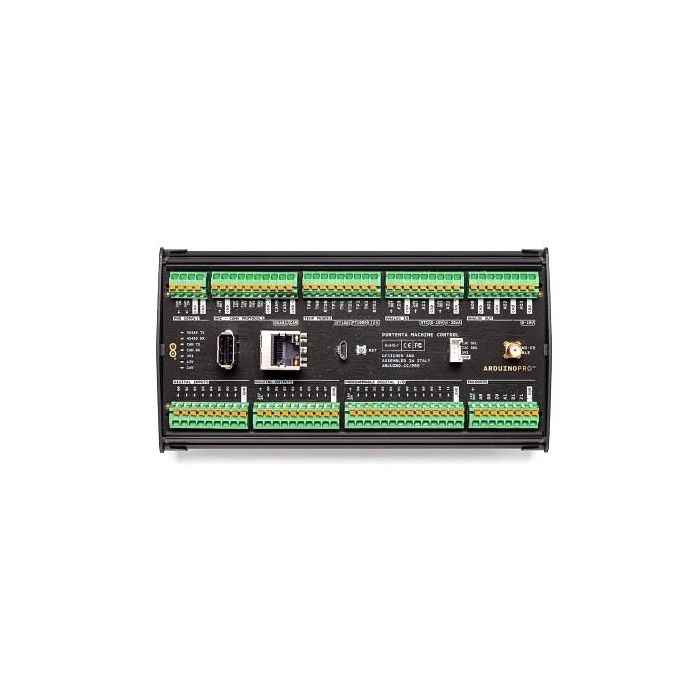

Arduino Portenta Machine Control adds Industrial IoT capabilities to standalone industrial machinery. The Portenta Machine Control is a fully centralized, low-power, industrial control unit. It drives equipment, machinery, and can be programmed using the Arduino framework or other embedded development platforms. Its computing power enables a wide range of predictive maintenance and AI use cases. It enables the collection of real-time data from the factory floor and supports the remote control of equipment, even from the cloud.
Similar Items
Features & Specs
- Input Voltage: 24 VDC
- Output Voltage: 24 V
- Dimensions: 170 mm x 90 mm x 50 mm
- Interface Type: CAN, I2C, RS-232, RS-422/485, USB
- Maximum Operating Temperature: + 85 C
- Minimum Operating Temperature: - 40 C
- Shorter Time-To-Market
- Give new life to existing products
- Add connectivity for monitoring and control
- Tailor it to your need, each I/O pin can be configured
- Make equipment smarter to be ready for the AI revolution
- Provide security and robustness from the ground up
- Open new business model opportunity (e.g. servitization)
- Interact with your equipment with advanced HMI
- Modular Design for adaptation & upgrades
- Industrial performance leveraging the power of Arduino Portenta boards
- DIN bar compatible housing
- Push-in terminals for fast connection
- Compact device (170 x 90x 50 mm)
- Reliable design, operating at industrial temperature rates (-40°C to +85°C) with a dual-core architecture that doesn’t require any
- External cooling
- Embedded RTC (Real Time Clock) to ensure perfect synchronization of processes
- Leverage the embedded connectivity without any external parts
- CE, FCC, and RoHS certified
- Arduino Part #: AKX00032
Documentation
Customer Reviews
Arduino Portenta Machine Control
DEV-18402
Stock and Customer Discounts
$404.95 retail price.
Available Discounts
- $384.70 | 25+ units
- $364.46 | 100+ units
