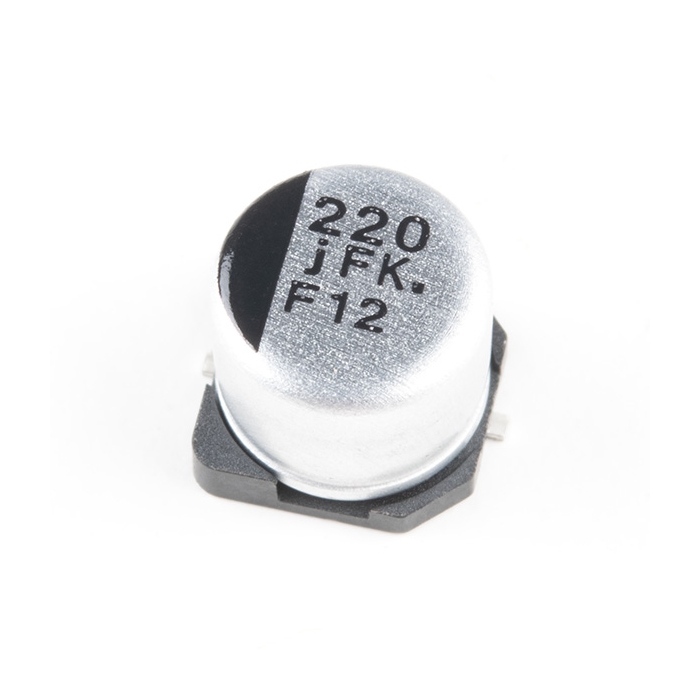

Capacitor Aluminum Electrolytic - 220uF, ±20%, 6.3V
COM-22002

Capacitor Aluminum Electrolytic - 220uF, ±20%, 6.3V

SKU: COM-22002

Panasonic FK SMT Aluminum Electrolytic Capacitors feature a high endurance of up to 5000 hours at +105°C and a temperature range as low as -55°C.

$0.95
In stock
SKU
COM-22002
In stock
Stock/Discounts

Product Overview

Panasonic FK SMT Aluminum Electrolytic Capacitors feature a high endurance of up to 2000 hours at +105°C and a temperature range as low as -55°C. These capacitors offer low impedance in a miniature package. FK SMT Aluminum Electrolytic Capacitors are RoHS compliant and available in a vibration-proof product with an operating voltage range between 6.3VDC.

Features & Specs

  • Capacitance: 220 µF
  • Tolerance: ±20%
  • Voltage - Rated: 6.3 V
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Operating Temperature: -55°C ~ 105°C
  • Polarization: Polar
  • Ratings: AEC-Q200
  • Ripple Current @ Low Frequency: 180 mA @ 120 Hz
  • Ripple Current @ High Frequency: 240 mA @ 100 kHz
  • Impedance: 360 mOhms
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Max): 0.240" (6.10mm)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)

Documentation
