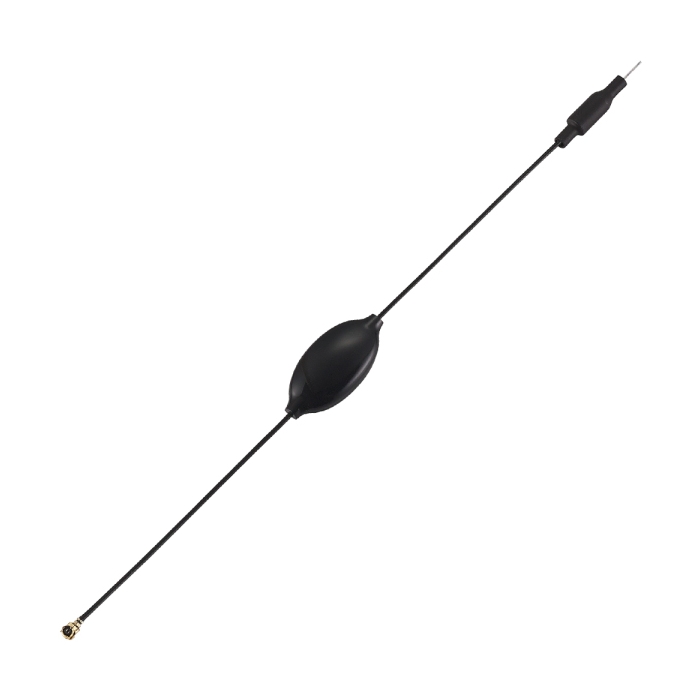

Cipher 5.8GHz Anti-Jamming Antenna
Cipher 5.8GHz Anti-Jamming Antennas are flexible anti-jamming antennas ideal for use in unmanned aerial vehicle (UAV) applications.
Product Overview
Taoglas Cipher 5.8GHz Anti-Jamming Antennas are flexible anti-jamming antennas ideal for use in unmanned aerial vehicle (UAV) applications. Taoglas Cipher 5.8GHz Anti-Jamming Antennas offer an efficiency of over 40% in the 5.85GHz to 5.92GHz range. These antennas include an embedded ceramic dielectric filter that helps preserve maximum reception range and signal quality by preventing out-of-band signals from overdriving the LNA in the receiver. The antennas have a near-isotropic radiation pattern, allowing for good coverage at most angles and when mounted in pairs, especially at 90° to each other. This radiation pattern also allows for radio transmission and reception without dead spots.
Features & Specs
- Ideal for use in UAV applications
- Excellent efficiency of over 40% in 5.85GHz to 5.92GHz range
- Suppresses out-of-band interference
- 5.85GHz to 5.925GHz frequency
- Flexible
- Embedded dielectric ceramic filter
- Omni-directional
- Linear polarization
- 1.13mm micro coax cable
- IPEX MHFI connector (U.FL compatible)
- 8.8mm x 13mm x 176mm dimensions
- < -10dB return loss
- Peak gain
- 1.74dBi (AJA.02)
- -0.63dBi (AJA.10)
- 50Ω impedance
- 10W maximum input power
- -40°C to +85°C operating temperature range
- Non-condensing +65C 95% RH humidity
