Common Mode Choke - 2.55mH, 1kHz, 2A, 75 mOhms
COM-18412
Common Mode Choke - 2.55mH, 1kHz, 2A, 75 mOhms
SKU: COM-18412
In stock
SKU
COM-18412
Common Mode Chokes are useful in a variety of noise countermeasure applications, including power supplies, home appliances, and Internet of Things (IoT).
Product Overview

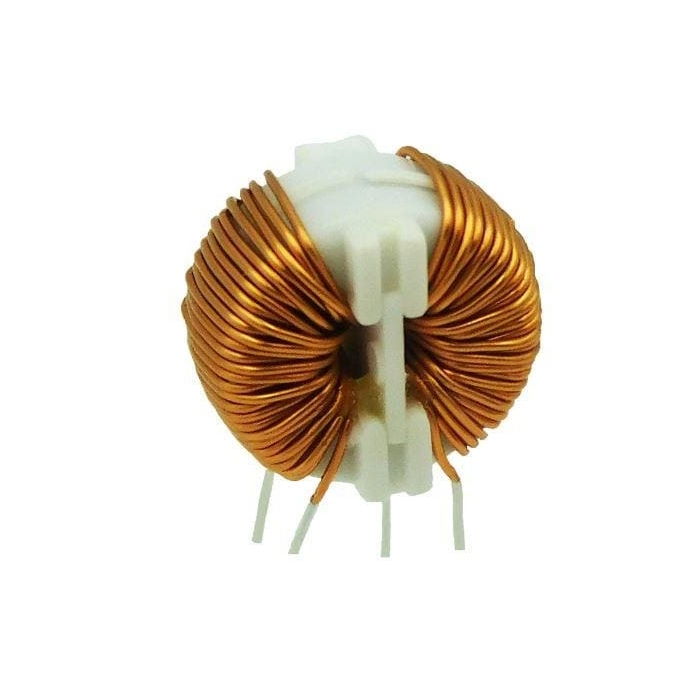

Bel Signal Transformer LPTC-V Toroidal Common Mode Chokes offer low DC resistance (DCR) and a 0.51mH to 25.5mH inductance range designed around a UL94V-0 plastic-cased ferrite core. Bel Signal Transformer LPTC-V Toroidal Common Mode Chokes are useful in a variety of noise countermeasure applications, including power supplies, home appliances, Internet of Things (IoT), and AV equipment. LPTC-V two-line chokes are ideal for suppression of conductive EMI emissions as commonly found in many electronic circuit designs. The series operates over a -55°C to +125°C operating temperature range.
Similar Items
Features & Specs
- Termination Style: Through Hole
- Inductance: 2.55 mH
- Maximum DC Current: 2 A
- Maximum DC Resistance: 75 mOhms
- Minimum Operating Temperature: - 55 C
- Maximum Operating Temperature: + 125 C
- Width: 13 mm
- Type: Toroidal
- Core Material: Ferrite
- Diameter: 18 mm
- Shielding: Unshielded
- Number of Channels: 2 Channel
- Lead Diameter: 0.5 mm
- Test Frequency: 1 kHz
Documentation
Customer Reviews
Common Mode Choke - 2.55mH, 1kHz, 2A, 75 mOhms
COM-18412
Stock and Customer Discounts
$3.95 retail price.
Available Discounts
- $3.75 | 25+ units
- $3.56 | 100+ units
