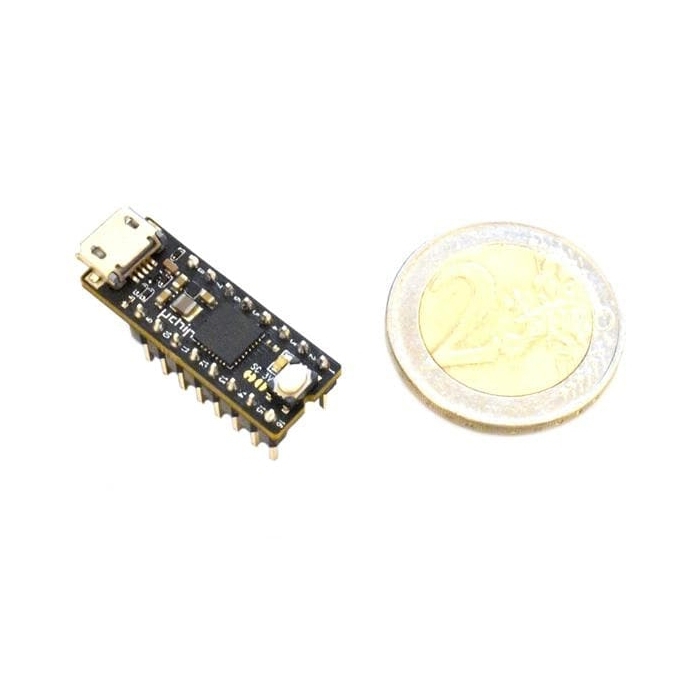

Crowd Supply ITACA Innovation uChip Microcontroller Board
Crowd Supply ITACA Innovation uChip Microcontroller Board is an Arduino Zero-compatible, narrow DIP-sized USB board.
Product Overview
Crowd Supply ITACA Innovation uChip Microcontroller Board is an Arduino Zero-compatible, narrow DIP-sized USB board. Based on the Microchip Technology SAM D21 Arm® Cortex®-M0+ Microcontroller, the uChip integrates 500mA boost and 1A buck converters and 14 I/O pins, two of which can be used for SWD programming and debugging. The tiny uChip can fit into a standard 0.3" 16-DIP socket or plug directly into a breadboard, making it easy to integrate into any application.
The Crowd Supply ITACA Innovation uChip can easily be programmed using BASIC, C/C++, asm, or CircuitPython.
With plenty of communication peripherals, low stand-by/run current consumption (270µA in stand-by when powered externally), and a compact size, uChip is ideal for IoT and battery-powered applications.
Features & Specs
- Microchip Technology ATSAMD21 MCU
- 48MHz Arm Cortex M0+
- 256KB flash (248KB free due to integrated bootloader)
- 32KB RAM with zero wait states
- I/O via 2x 8-pin headers with 2.54mm pitch, 7.62mm (0.3") row spacing
- 14x I/O pins, including two that can be used to connect an external SWD programmer/debugger
- 7x 12-bit ADC inputs
- 10-bit DAC output
- 14x external interrupt input pins
- Up to 5x serial interfaces using SPI, I2C, or UART
- I2S port for audio decoders
- Up to 13x PWM pins
- 2x power pins (VCC and GND)
- Programmable status LED
- Multi-function push-button for reset/program
- Power supply
- 5.0V via micro USB port, or 3.3V to 5.0V via pin
- Integrated 500mA boost and 1A buck converters
- Automatic power switching circuitry
