Current Sense Transformer - 1:50

Product Overview

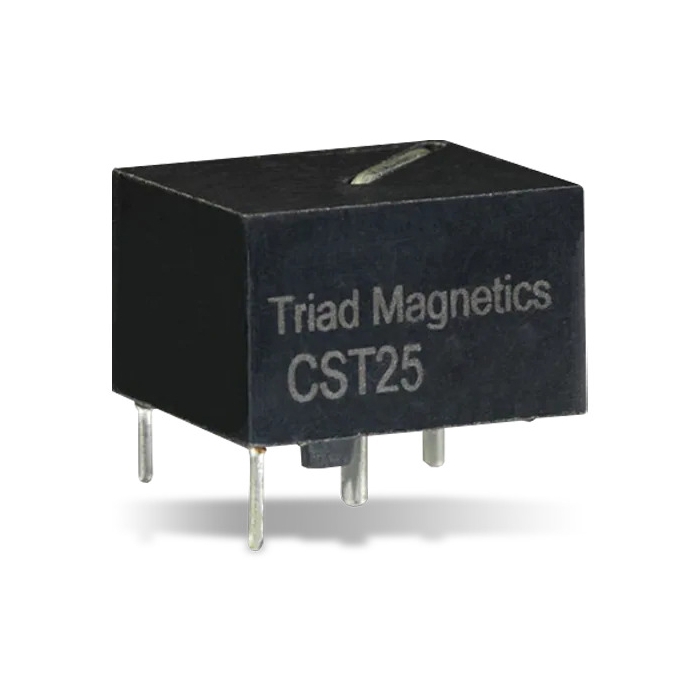

Triad Magnetics CST25 Current Sense Transformers are ideal for monitoring currents in high-frequency applications such as switch-mode power supplies, LED lighting, etc. The CST25 components are offered with a built-in sense winding, allowing for ease of use. These fully encapsulated current sense transformers allow for a high isolation voltage of 4000VAC between primary and secondary windings. There are five different popular turn ratios available.

Includes:

• Mounting Style: Through Hole
• Inductance: 4.7 mH
• Current Rating: 25A
• Turns Ratio: 1:50
• Secondary Resistance: 0.5 Ohms
• Termination Style: Solder Pin
• Frequency Range: 50 kHz to 500 kHz
• Operating Temperature Range: +40C to +100C
• Output Current: 500mA
