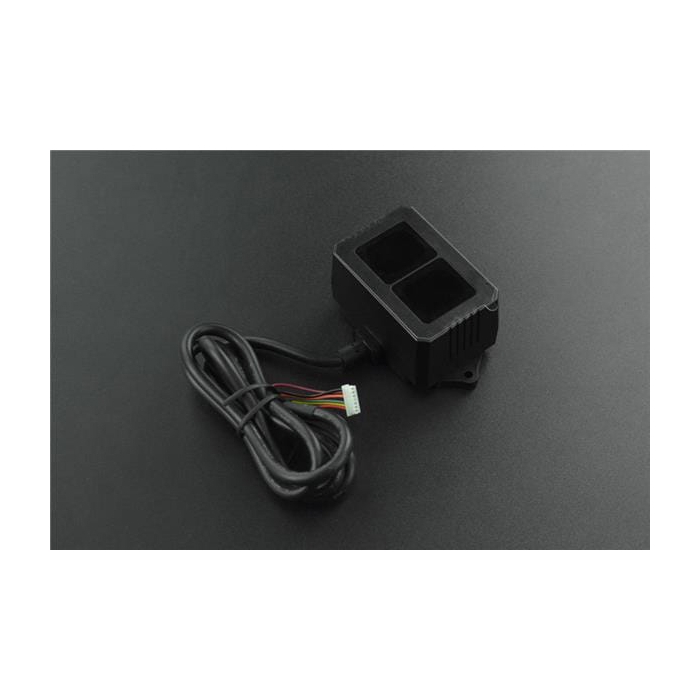

DFRobot TF02-i LiDAR Laser Range Sensor (40m)
SEN-19549
DFRobot TF02-i LiDAR Laser Range Sensor (40m)
SKU: SEN-19549
In stock
SKU
SEN-19549
DFRobot TF02-i LiDAR Laser Range Sensor (40m) is an industrial-grade medium-range distance sensor.
Product Overview
DFRobot TF02-i LiDAR Laser Range Sensor (40m) is an industrial-grade medium-range distance sensor. Its maximum detection range can reach up to 40m and it has an adjustable frame rate with a maximum of 1KHz. This rangefinder has a PC/ABS/PMMA enclosure with IP65 water and dust resistance. It supports a wide range of input voltages (7-30V) with reverse protection to protect the internal circuit and adopts the RS485 communication interface and standard Modbus protocol.
Similar Items
Features & Specs
- Sensing Distance: 40 m
- Resolution: 1 cm
- Operating Supply Voltage: 7 V to 30 V
- Operating Supply Current: 70 mA
- Interface Type: RS-485
- Minimum Operating Temperature: - 20 C
- Maximum Operating Temperature: + 60 C
- Mounting Style: Cable Mount
- IP Rating: IP65
- Height: 31.5 mm
- Length: 69 mm
- Width: 41.5 mm
