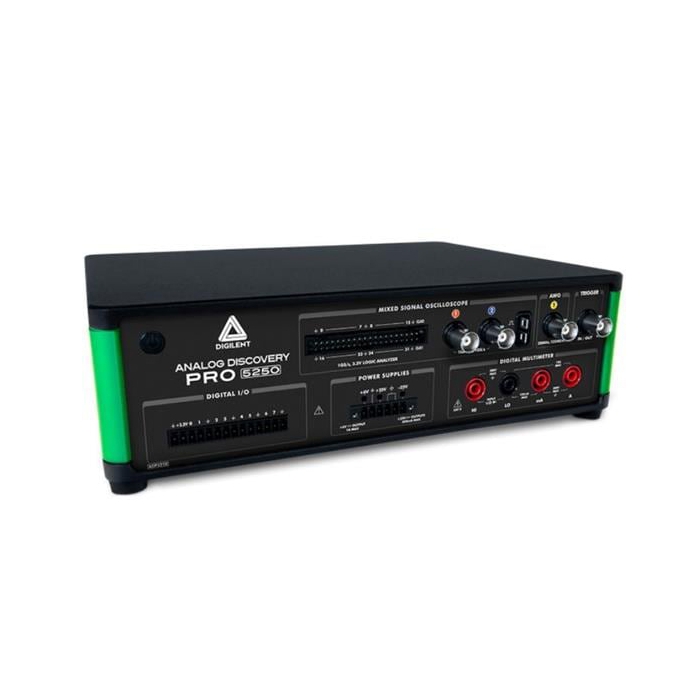

Digilent ADP5250 Analog Discovery Pro BNC Probe Bundle

Product Overview

Digilent ADP5250 Analog Discovery Pro is an all-in-one 1GS/s 100MHz mixed-signal oscilloscope, function generator, power supply, and DMM. The ADP5250 provides a higher sample rate, bandwidth, and rugged design to the Analog Discovery Pro family. The WaveForms application software drives the ADP5250.

The Digilent ADP5250 Analog Discovery Pro combines a mixed-signal oscilloscope with two 100MHz bandwidths, 1GS/s analog channels, 34 digital channels, and a tri-output power supply capable of up to 25V, an external trigger, Waveform Generator, and a built-in programmable DMM. This design creates a complete set of instruments into a flexible and programmable device. The ADP5250 achieves full DMM capabilities, including true current and resistance measurement and a 300V input range.

The ultimate all-in-one test system features a variety of advanced triggering options. For example, instruments within WaveForms can be cross-triggered by activating an oscilloscope capture based on a received and decoded digital protocol. In addition, external signals can trigger events using the dedicated external trigger input/output. The free WaveForms software enables these features to be configurable in the instruments themselves or for more control or automation in one of the available scripting interfaces.

Includes:

• 1 ADP5250
• 1 USB A to B cable
• 1 1x14 Digital I/O Screw Terminal Adapter
• 1 1x6 Power Supply Screw Terminal Adapter
• 1 2x18 Logic Analyzer MTE Cable
• 1 US IEC Cable
• 1 EU Adapter
• 1 UK Adapter
• 2 P2150 150MHz Oscilloscope Probe
• 2 BNC to Mini-grabber Cable
• 1 Set of Red and Black DMM Probes
