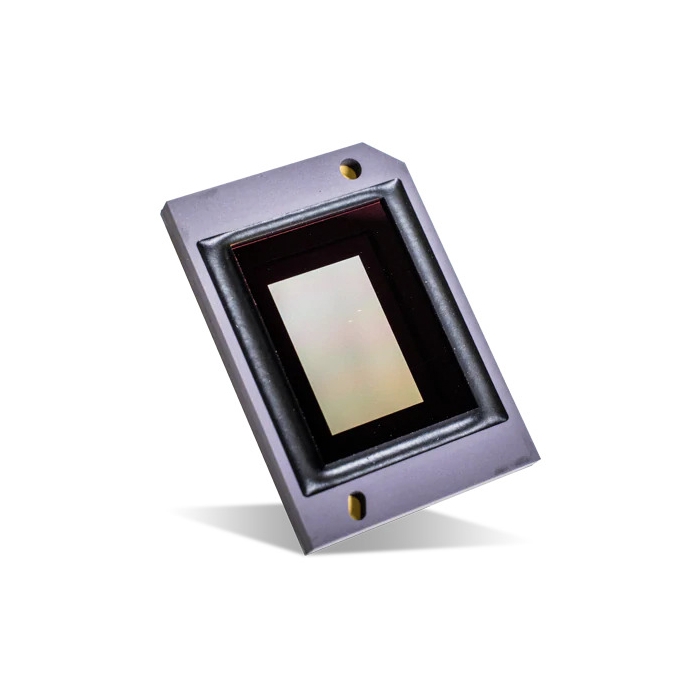

DLP470TE Digital Micromirror Device (DMD)
DLP470TE digital micromirror device is a digitally controlledmicro-electromechanical system spatial light modulator that enables bright, full 4KUHD display
Product Overview
The TI DLP470TE digital micromirror device (DMD) is a digitally controlledmicro-electromechanical system (MEMs) spatial light modulator (SLM) that enables bright, full 4KUHD display solutions. When coupled with the appropriate optical system, the DLP470TE DMD displaystrue 4K UHD resolution (over 8 million pixels on screen) and is capable of delivering accurate, detailed images to a variety of surfaces. The DLP470TE DMD, together with the DLPC4422 displaycontroller and DLPA100 power and motor driver, comprise the DLP® 0.47 4K UHD chipset. This solution is a great fit for many highbrightness 4K UHD display systems.
Features & Specs
- 0.47-inch diagonal micromirror array
- 4K UHD (3840 x 2160) display resolution
- 5.4-micron micromirror pitch
- ±17° micromirror tilt (relative to flat surface)
- Bottom illumination
- 2x LVDS input data bus
- Dedicated DLPC4422 display controller, DLPA100 power management IC and motor driver for reliable operation
- Operating Supply Voltage: 1.8V
- Minimum Operating Temperature: 0 C
- Maximum Operating Temperature: + 90 C
- Mounting Style: SMD/SMT
- Package/Case: CLGA-257
- Packaging: Tray
- Operating Frequency: 400 MHz
- Type: DMD
- Operating Supply Current: 1500mA
- Pd - Power Dissipation: 3260.7 mW
Documentation
Customer Reviews
Stock and Customer Discounts
Available Discounts
- $321.05 | 25+ units
- $304.16 | 100+ units
