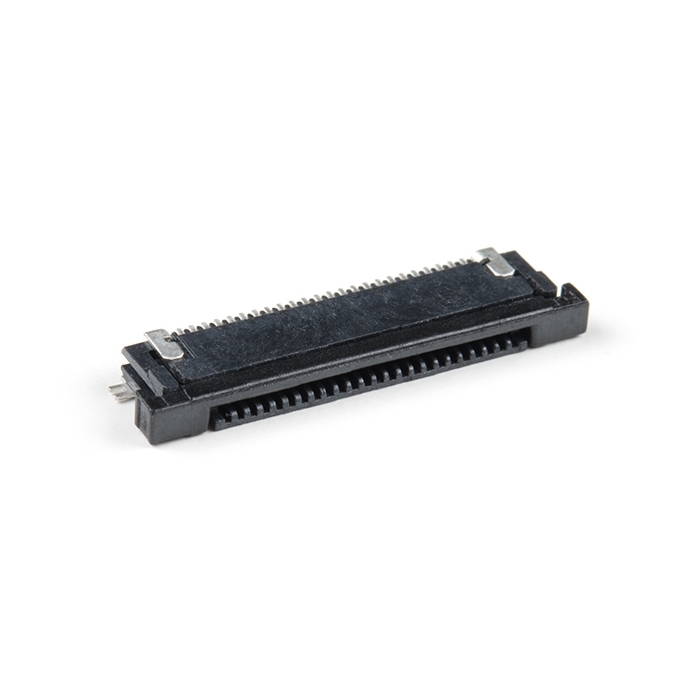

FPC Camera Connector - 24-Pin, 0.5mm (Bottom-Contact)
COM-16305
FPC Camera Connector - 24-Pin, 0.5mm (Bottom-Contact)
SKU: COM-16305
Amphenol FCI FFC/FPC Flexible Circuit Connectors are a broad range of innovative connector solutions to terminate FFC/FPC.
$1.05
In stock
SKU
COM-16305
Product Overview
Amphenol FCI FFC/FPC Flexible Circuit Connectors are a broad range of innovative connector solutions to terminate FFC/FPC. This 24-Pin FPC connector has a 0.5mm pitch and comes with a bottom contact in a right angle orientation and a surface mount termination. This connector has a current rating of 500mA and a voltage rating of 50V. These 0.5mm pitch connectors provide a cost-effective, higher pin count flex connector solution. A traditional sliding actuator secures the cable.
This is the connector used on the SparkFun Edge Development Board - Apollo3 Blue to connect the (HM01B0) Himax CMOS Imaging camera.
Similar Items
Hookup Accessories
Features & Specs
- Number of Positions: 24 Position
- Pitch: 0.5mm
- Termination Style: SMD/SMT
- Mounting Angle: Right Angle
- Contact Location: Bottom Contact
- Contact Plating: Tin
- Current Rating: 500mA
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Housing Material: Liquid Crystal Polymer (LCP)
- Voltage Rating: 50V
- Contact Material: Phosphor Bronze
- Flammability Rating: UL 94 V-0
- Actuation Type: ZIF
- Insulation Resistance: 100MOhms
- FFC, FCB Thickness: 0.30mm, 0.33mm
- Height Above Board: 1.80mm
- Locking Feature: Slide Lock
- Cable End Type: Straight, Tapered
