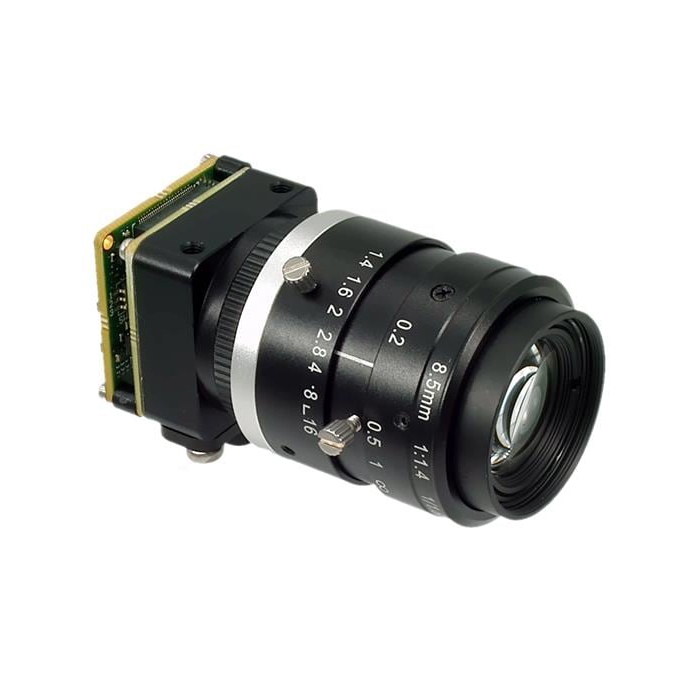

FRAMOS FSM-IMX547C Camera Module (Color)

Product Overview

FRAMOS FSM-IMX547 Camera Modules offer input voltages of 1.1V, 1.8V, 2.9V, and 3.3V and SLVS or SLVS-EC interfaces. These IMX547 modules target applications that require mid- to high-resolution with a fully featured sensor and are designed with compact cameras in mind. These camera modules feature unique pixel architecture that puts the light-sensitive photodiode on top of the readout electronics. This BSI approach increases light sensitivity, improves blue light response, and allows for larger chief ray angle acceptance for each pixel. This design leads to more accurate blue color images while minimizing the need to increase blue gains, providing more homogeneous images, especially with wide-angle lenses.

FRAMOS FSM-IMX547 Camera Modules are built with a reduced feature set and are ideal for applications that require the pixel performance and resolution offered but do not need to process images at high speeds. These features make the FSM-IMX547 camera modules suitable for applications needing real-time videos like traffic monitoring or broadcast.
