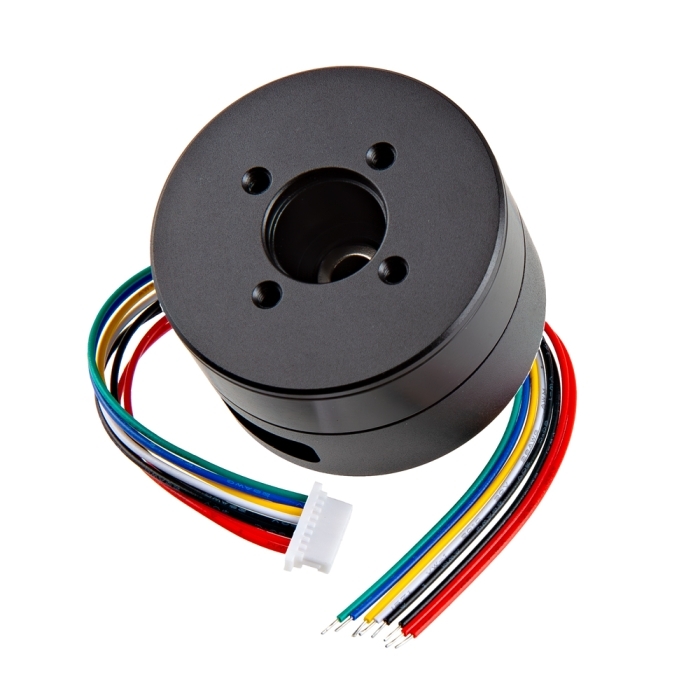

Gimbal Servo Motor - 12V, 467RPM
Here is a 40mm high quality gimbal servo for all your mechatronic needs.
Helpful Documentation
DatasheetProduct Overview
This high-performance 12V Gimbal Servo Motor is engineered for precision control in demanding applications. Its compact 40x24mm form factor houses a powerful motor capable of delivering a nominal speed of 467 RPM, with a maximum speed of 1412 RPM.
Equipped with a high-resolution 14-bit single-turn absolute encoder, this servo ensures precise positioning and feedback. Communication via RS485/CAN provides seamless integration into advanced control systems. Its robust design and wide operating temperature range (-20°C to 80°C) make it suitable for a variety of challenging environments. This motor is ideal for robotics, camera gimbals, precision automation, and other applications requiring accurate and reliable motion control.
Features & Specs
- Nominal Voltage: 12V
- Voltage Range: 5~28V
- Nominal Current: 1.1A
- Nominal Power: 13.2W
- Nominal Torque: 0.09N.m
- Nominal Speed: 467rpm
- Max Speed: 1412rpm
- Stall Torque: 0.15N.m
- Torque Constant: 0.08Nm/A
- Stall Current: 1.9A
- Speed Constant: 117rpm/V
- Number of Pole Pairs: 11
- Phase to Phase Resistance: 3.17Ω
- Phase to Phase Inductance: 0.54mH
- Communication: RS485/CAN
- Encoder Type: Single-turn absolute
- Resolution: 14bit
- Size: 40 x 24mm
- Weight: 70g
- Working Temperature: -20/80°C
