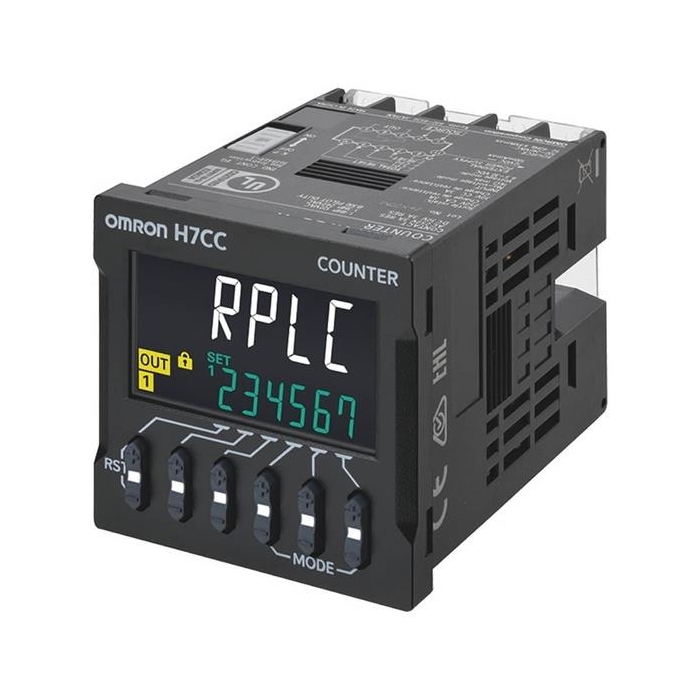

H7CC Digital Counter/Tachometer - 2-stage, Screw Term, 12-48VDC, Contact SPST+SPDT
The H7CC devices feature an improved user interface that is intuitive and offers overall better visibility with a white-color display.
Product Overview
Omron Industrial Automation H7CC Digital Counters/Tachometers are equipped with a memory backup and an H7AN compatibility function to facilitate problem-free conversion from the H7CN/H7AN models. The H7CC devices feature an improved user interface that is intuitive and offers overall better visibility with a white-color display. Each key of the 6-digit display can be operated up/down for easier use. A replacement time notification function notifies the user of potential preventative maintenance and predicts the end of service life. The body depth is a short 59mm allowing for thinner control panels. Isolated power supply/input circuits (all models) eliminate special considerations for grounding or leakage current.
Features & Specs
- Type: Preset counter/Tachometer
- Accuracy: +/- 0.1 %
- Display Type: LCD, 6 Digit
- Voltage: 24 VAC, 12 VDC to 48 VDC
- Frequency Response: 30 Hz
- Series: H7CC
- Brand: Omron Automation and Safety
- Maximum Operating Temperature: + 55 C
- Minimum Operating Temperature: - 10 C
- Model #: H7CC-AWD
