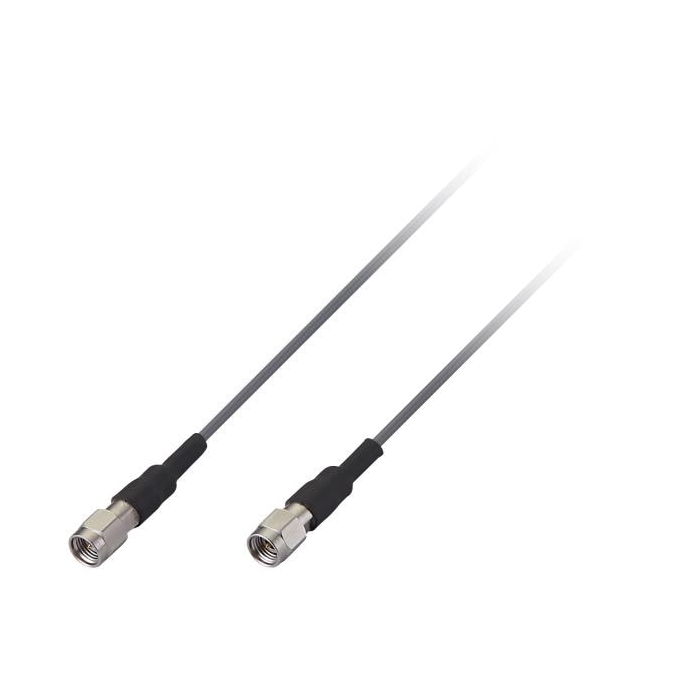

High Performance mmWave Cable Assembly (Rated to 40GHz) with 915mm (24″) GORE™ 3506 and 2 x 2.92(M) Connectors
CAB-18535
High Performance mmWave Cable Assembly (Rated to 40GHz) with 915mm (24″) GORE™ 3506 and 2 x 2.92(M) Connectors
SKU: CAB-18535
In stock
SKU
CAB-18535
A high frequency millimetre Wave product with the quality and precision required for 5G NR for the millimetre wave spectrum.
Product Overview
Taoglas have developed a range of high frequency millimetre Wave products with the quality and precision required for 5G NR for the millimetre wave spectrum. The diversity of applications and ever-changing demands for higher frequency test systems are driving coaxial cable assemblies to the next level. The specification requirements around performance for test cables extend beyond the tight tolerance typically required for lab performance to a wider range of 5G applications.
Rated up to 40 GHz, the GORE™ 3506 range includes cable assemblies terminating in 2.92(M) connectors.
Similar Items
Hookup Accessories
Features & Specs
- Connector A Series: 2.92 mm
- Connector A Gender: Plug (Male)
- Connector A Body Style: Straight
- Connector B Series: 2.92 mm
- Connector B Gender: Plug (Male)
- Connector B Body Style: Straight
- Cable Length: 915 mm
- Maximum Frequency: 40 GHz
- Cable Type: Coaxial
- Jacket Color: Gray
- Frequency Range: DC to 40 GHz
- Brand: Taoglas
- Connector A Polarity: Normal
- Connector B Polarity: Normal
- Minimum Frequency: DC
- Moisture Sensitive: Yes
- Polarity: Normal
Documentation
Customer Reviews
High Performance mmWave Cable Assembly (Rated to 40GHz) with 915mm (24″) GORE™ 3506 and 2 x 2.92(M) Connectors
CAB-18535
Stock and Customer Discounts
$739.95 retail price.
Available Discounts
- $702.95 | 25+ units
- $665.96 | 100+ units
