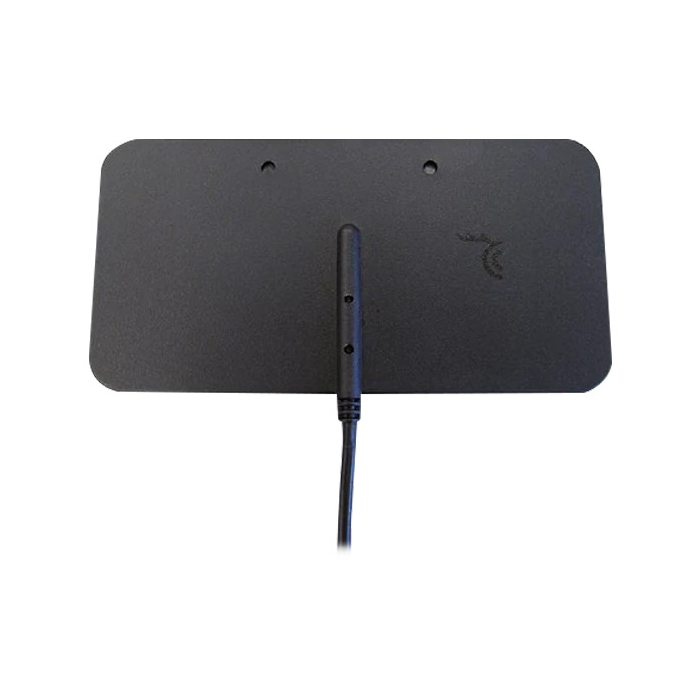

HirschmannCEL 7026 A Cellular (2G/3G/4G) Vehicle Glazing Antenna

Name: HirschmannCEL 7026 A Cellular (2G/3G/4G) Vehicle Glazing Antenna
SKU: CEL-16867
Price: 21.95 USD

SKU: CEL-16867

Out of stock

SKU

CEL-16867

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Overview

Product Overview

TE Connectivity's HirschmannCEL 7026 A Cellular (2G/3G/4G) Vehicle Glazing Antennas feature easy interior and exterior windshield mounting. This antenna comes with a SMA male connector. TE Connectivity / Hirschmann CEL 7026 A Cellular (2G/3G/4G) Vehicle Glazing Antennas are designed for cellular networks.

Features & Specs

Minimum Frequency: 698 MHz
Maximum Frequency: 2.69 GHz
Frequency range:
LTE (low): 698 to 862MHz
CELL (low): 824 to 960MHz
CELL (high): 1710 to 2170MHz
LTE (high): 2305 to 2690MHz
Gain: 2.15 dBi
Impedance: 50 Ohms
VSWR: 2:1
Minimum Operating Temperature: -30C
Maximum Operating Temperature: +80C
Number of Bands: 4 Band
Termination Style: Connector
Connectors:
SMA male
Mounting Style: Adhesive
Protocol - Cellular,NBIoT,LTE: Cellular (NBIoT, LTE)
Length: 107mm
Width: 54mm
Height: 3.5mm
IP Rating: IP6K4
Polarization: Linear
Cable Length: 118 in
Cable Type: RG-174
