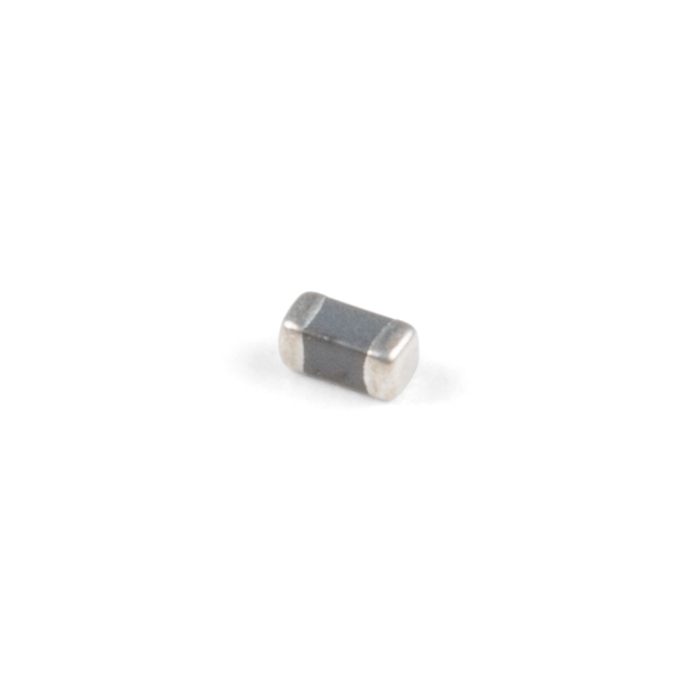

Inductor Ferrite Bead - 120Ohm
COM-16288
Inductor Ferrite Bead - 120Ohm
SKU: COM-16288
This is an inductor ferrite bead at 120Ohm
Out of stock
SKU
COM-16288
Product Overview
This is an inductor ferrite bead with an impedance of 120Ohms, maximum DC current of 300mA and a maximum DC resistance of 700mOhms.
Murata BLM Series EMIFIL® Chip Ferrite Beads are for power supply circuits that require high rated current. The ferrites are suitable for suppressing high-frequency noise over a wide frequency range in power supply circuits. The series offers AEC-Q200 certified product for automotive applications such as infotainment and powertrain safety applications. Non-automotive grade ferrites are ideal for general purpose power supply circuit including industrial, factory automation and networking.
Similar Items
Features & Specs
- Impedance: 120Ohms
- Maximum DC Current: 300mA
- Tolerance: 25%
- Maximum DC Resistance: 700mOhms
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
Documentation
Customer Reviews
Inductor Ferrite Bead - 120Ohm
COM-16288
$0.95 retail price.
Available Discounts
- $0.90 | 25+ units
- $0.86 | 100+ units
