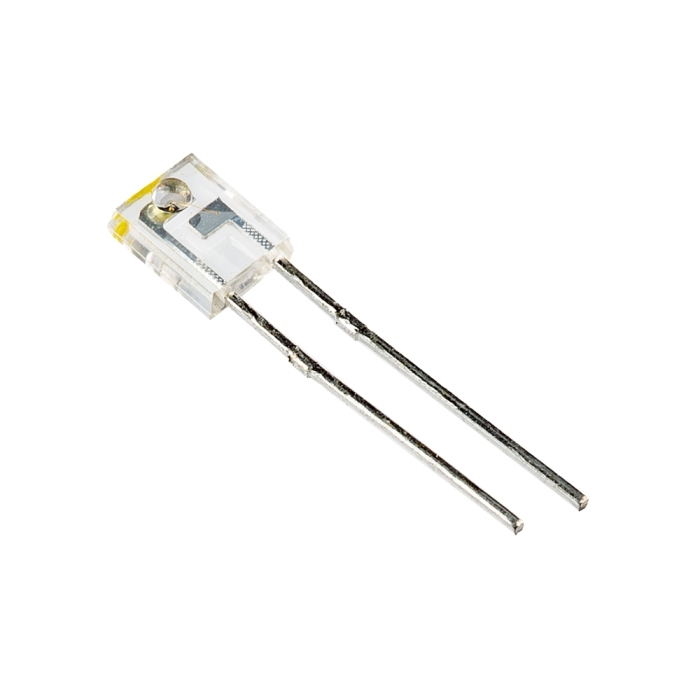

Infrared Emitter - LTE-302
COM-26984

Infrared Emitter - LTE-302

SKU: COM-26984
$0.50
In stock
SKU
COM-26984
Backorder
Stock/Discounts

This simple device operates at 940nm and works well for generic IR systems.

Product Overview

An Infrared emitter, or IR emitter, is a source of light energy in the infrared spectrum. This little part is a light emitting diode (LED) that is used in order to transmit infrared signals from a remote control. This simple device operates at 940nm and works well for generic IR systems. This emitter is driven up to 50mA with a current limiting resistor as with any LED device.

Sold as individual units.

Features & Specs

  • Current - DC Forward (If) (Max): 50mA
  • Radiant Intensity (Ie) Min @ If: 0.662mW/sr @ 20mA
  • Wavelength: 940nm
  • Voltage - Forward (Vf) (Typ): 1.2V
  • Viewing Angle: 40°
  • Orientation: Side View
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Through Hole

Documentation
