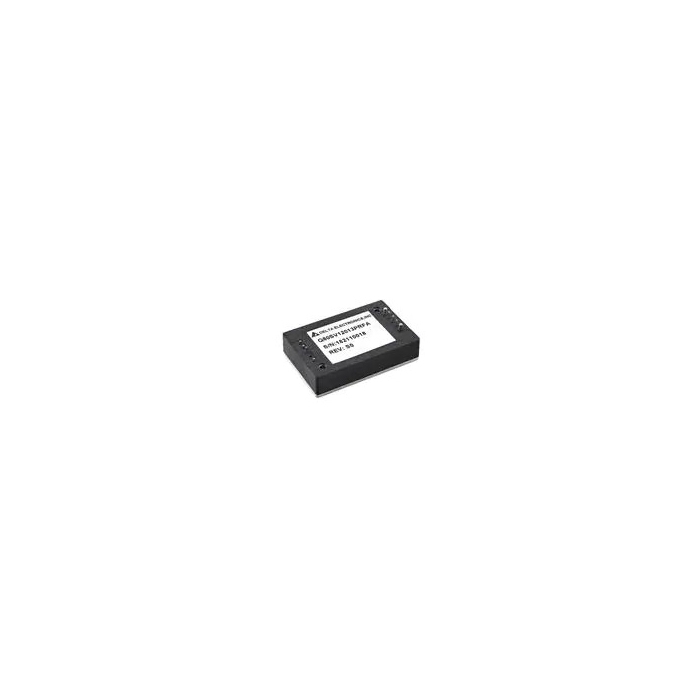

Isolated DC/DC Converter - 14.4-170Vin, 12V, 12.5A, 150W, 1/4 brick
COM-17613
Isolated DC/DC Converter - 14.4-170Vin, 12V, 12.5A, 150W, 1/4 brick
SKU: COM-17613
Out of stock
SKU
COM-17613
Delta Electronics Q80SV 150W Quarter-Brick DC/DC Power Modules provide efficiency up to 90% and output power up to 150W in a quarter-brick package.
Product Overview
Delta Electronics Q80SV 150W Quarter-Brick DC/DC Power Modules provide efficiency up to 90% and output power up to 150W in a quarter-brick package. Delta Electronics Q80SV 150W DC/DC Power Modules meet the requirements of EN50155 and feature a 1.4V to 170V input voltage range. The series offers 5V to 54V single output voltage and 4242VDC input to output reinforced isolation. Applications include security, laboratory, industrial, and transportation.
Similar Items
Features & Specs
- Number of Outputs: 1 Output
- Output Power: 150 W
- Input Voltage, Nominal: 80 V
- Input Voltage, Min: 14.4 V
- Input Voltage, Max: 170 V
- Output Voltage-Channel 1: 12 V
- Output Current-Channel 1: 12.5 A
- Isolation Voltage: 4.242 kV
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 85 C
- Mounting Style: Through Hole
- Package / Case: 1/4 Brick
- Length: 60.6 mm
- Width: 39 mm
- Height: 12.7 mm
Documentation
Customer Reviews
Isolated DC/DC Converter - 14.4-170Vin, 12V, 12.5A, 150W, 1/4 brick
COM-17613
Stock and Customer Discounts
$143.95 retail price.
Available Discounts
- $136.75 | 25+ units
- $129.56 | 100+ units
