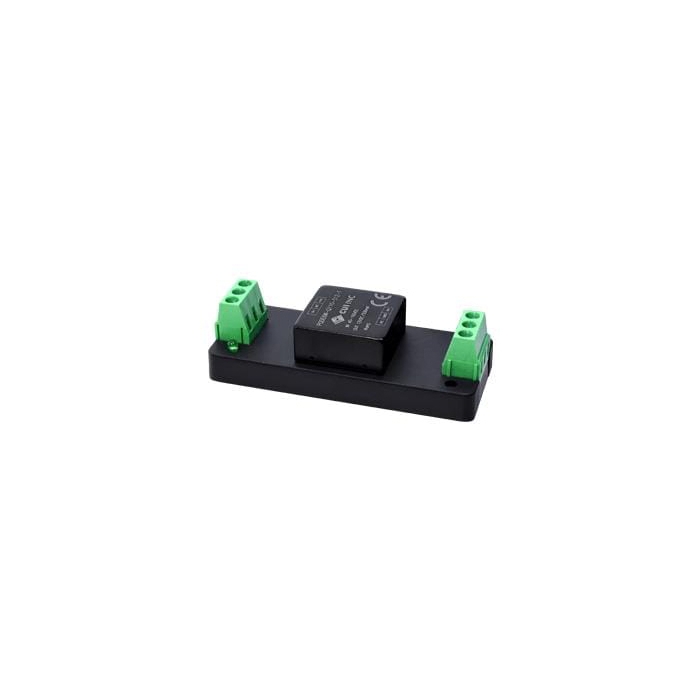

Isolated DC/DC Converter - 15/-15Vdc, 0.2/-0.2A, 6W, 40-160Vdc Input Range
COM-18663
Isolated DC/DC Converter - 15/-15Vdc, 0.2/-0.2A, 6W, 40-160Vdc Input Range
SKU: COM-18663
In stock
SKU
COM-18663
This converter features output short circuit, overcurrent, and overvoltage protection.
Product Overview
CUI Inc PQDE6W-Q110 6W Isolated DC-DC Converters offer an ultra-wide 4:1 input range of (40VDC to 160VDC). The series offers 2250VDC isolation and efficiency up to 86% with a wide operating temperature of -40°C to +85°C. The converters feature output short circuit, overcurrent, and overvoltage protection. CUI Inc PQDE6W-Q110 6W Isolated DC-DC Converters meet EN50155 railway standards and are ideal for use in harsh environments.
Similar Items
Features & Specs
- Number of Outputs: 2 Output
- Output Power: 6 W
- Input Voltage, Nominal: 110 V
- Input Voltage, Min: 40 V
- Input Voltage, Max: 160 V
- Output Voltage-Channel 1: 15 V
- Output Current-Channel 1: 200 mA
- Output Voltage-Channel 2: - 15 V
- Output Current-Channel 2: 200 mA
- Isolation Voltage: 2.25 kV
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 85 C
- Mounting Style: Chassis
- Length: 76 mm
- Width: 31.5 mm
- Height: 21.2 mm
- Model #: PQDE6W-Q110-D15-T
Documentation
Customer Reviews
Isolated DC/DC Converter - 15/-15Vdc, 0.2/-0.2A, 6W, 40-160Vdc Input Range
COM-18663
Stock and Customer Discounts
$28.95 retail price.
Available Discounts
- $27.50 | 25+ units
- $26.06 | 100+ units
