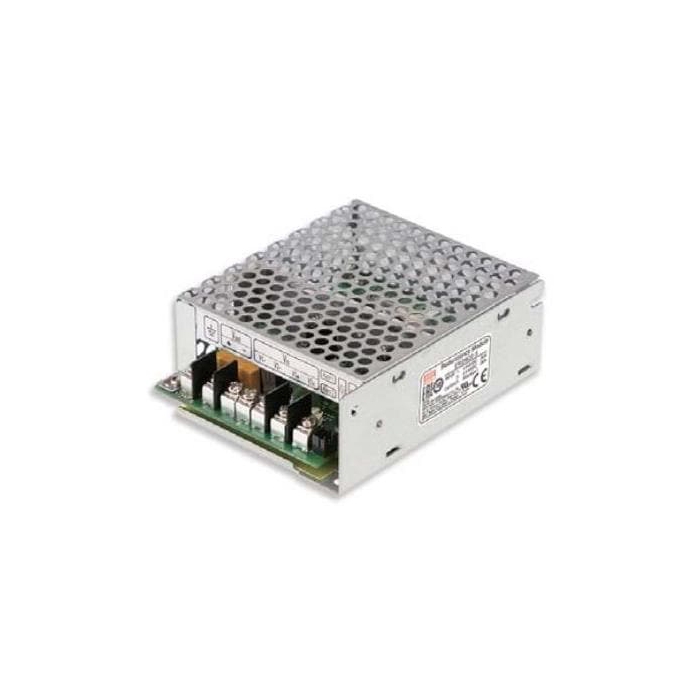

Isolated DC/DC Converter - 20A, 48Vdc, Redundancy Module
PRT-18671

Isolated DC/DC Converter - 20A, 48Vdc, Redundancy Module

SKU: PRT-18671
Out of stock
SKU
PRT-18671

These Redundancy Modules are used with a backup power supply to improve overall system operation reliability.

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Product Overview

MEAN WELL DRDN-20/40 and ERDN-20/40 Series Redundancy Modules are used with a backup power supply to improve overall system operation reliability. These modules feature 5V (ERDN20 only) /12V/24V/48V input voltage for selection, support for N+1 and 1+1 redundancy systems, built-in two rails DC input contacts, and a single output. The DRDN-20/40 and ERDN-20/40 modules adopt MOSFET technology to reduce heat loss and the voltage difference between input and output voltages. These modules operate from -40°C to 80°C ultra-wide temperature range.

Features & Specs

  • Number of Outputs: 1 Output
  • Output Power: 1.5 W
  • Input Voltage, Nominal: 48 V
  • Input Voltage, Min: 36 V
  • Input Voltage, Max: 60 V
  • Output Current-Channel 1: 20 A
  • Isolation Voltage: 500 V
  • Minimum Operating Temperature: - 40 C
  • Maximum Operating Temperature: + 80 C
  • Mounting Style: Chassis
  • Length: 99 mm
  • Width: 82 mm
  • Height: 36 mm
  • Model #: ERDN20-48
