Isolated DC/DC Converter, 9-36Vin, 12V, 5A, 60W
This is a ruggedized 60W DC/DC converter with an ultra-wide 4:1 input voltage range.
Product Overview

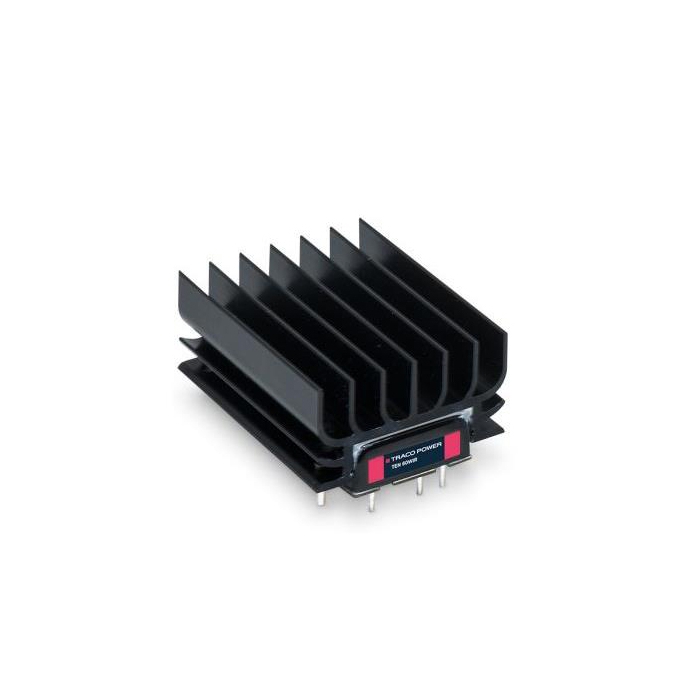

TRACO Power TEN 60WIR series are single and dual-output, ruggedized 60W DC/DC converters designed for railway and industrial applications with an ultra-wide 4:1 input voltage range. The series provides increased resistance against electromagnetic interference, shock/vibration, and thermal shock. The standard version comes with a specifically designed, pre-assembled heatsink in a 50.8mm x 40.7mm x 25.5mm overall package (2" x 1.6”) extending the thermal performance to -40° to +70°C ambient without derating. TRACO Power TEN 60WIR offers high efficiency of up to 92% and is approved to EN 50155 and EN 61373 standards for railway and transportation systems as well as IEC/EN/UL 62368-1 approved.
Features & Specs
- Number of Outputs: 1 Output
- Output Power: 60 W
- Input Voltage, Nominal: 24 V
- Input Voltage, Min: 9 V
- Input Voltage, Max: 36 V
- Output Voltage-Channel 1: 12 V
- Output Current-Channel 1: 5 A
- Isolation Voltage: 3 kV
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 90 C
- Mounting Style: Through Hole
- Length: 50.8 mm
- Width: 25.4 mm
- Height: 25.4 mm
- Model #: TEN 60-2412WIR
Documentation
Customer Reviews
Stock and Customer Discounts
Available Discounts
- $119.65 | 25+ units
- $113.36 | 100+ units
