The OAK-D-IoT-40 is an Embedded/IoT version of the OAK-D imaginf platform from Luxonis.

Product Overview

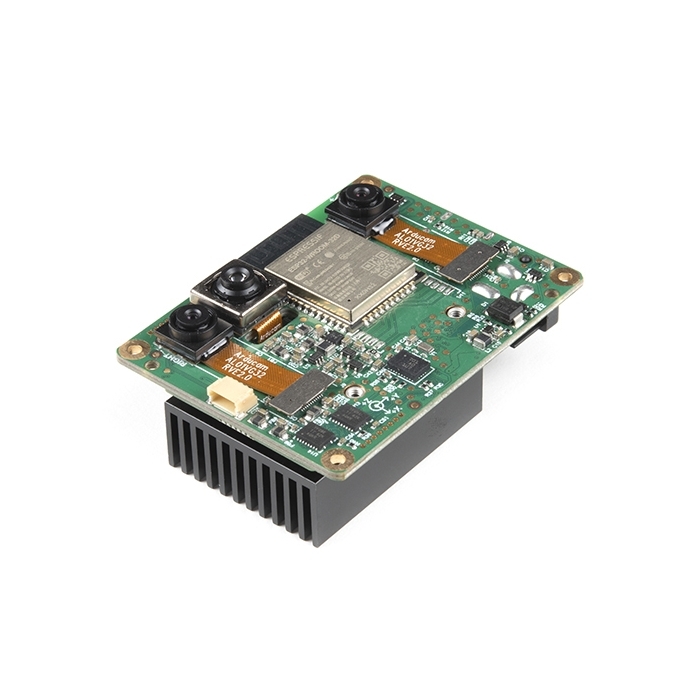

The OAK-D-IoT-40 is an Embedded/IoT version of the OAK-D imaginf platform from Luxonis. This sensor can be used completely standalone or via USB with a host like normal USB-only variants of DepthAI. It has a built-in ESP32 which provides WiFi, Bluetooth® (including BLE), as well as other interfaces.

This OAK-SOM-IoT system on module is what powers this OAK-D model. This modular design allows you to leverage its open-source designs to embed the power of OAK-D into your own products and/or customize the OAK-D-IoT to your exact needs. And like the OAK-D, this model includes the BNO085 IMU which is supported in the DepthAI API

This embedded variant includes a 128MB NOR flash, and boot-switch capabilities such that it can be booted over USB, or set to boot out of NOR-flash, for communication with the onboard ESP32 over SPI.

Features & Specs

  • Cameras
  • 1x Color 12MP, 4K/60Hz Camera
  • 2x Global-Shutter Mono 720P/120Hz in Synchronized Stereo Pair
  • Vision Processor: MA2485 or MA2085 (512MB or 2GB)
  • 100-Pin Modular Connector
  • Interfaces (all through the 100 pin connector)
  • 3x MIPI (1x 4-lane, 2x 2-lane)
  • USB3
  • I2C/SPI/UART/GPIO (1.8V & 3.3V)
  • Storage: Optional on-board NOR Flash, and/or EEPROM
  • Software
  • OpenVINO Compatible
  • Python and C++ API for configuring combination of:
  • Neural Inference
  • Stereo Depth
  • Feature Tracking
  • Video/Image Encoding
  • Actuation (e.g. GPIO drive)
  • Power: Single 5V or 3.3V power input
  • Dimensions: 40 x 30 x 6mm
