MAT.500A 6in1 Integrated Antenna Board
COM-18144
MAT.500A 6in1 Integrated Antenna Board
SKU: COM-18144
Out of stock
SKU
COM-18144

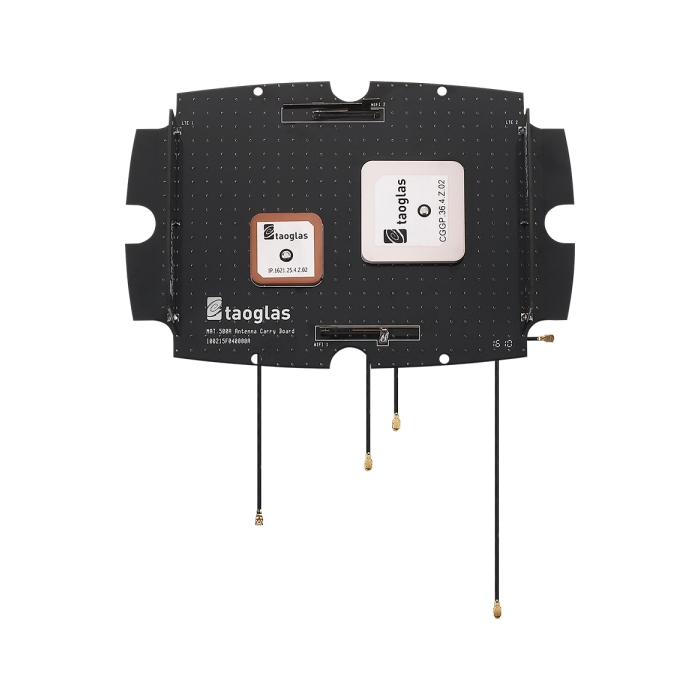

MAT.500.A Embedded Antenna Board combines LTE MIMO antennas, Wi-Fi MIMO antennas, plus GPS/GLONASS, and Iridium 1621MHz antennas.
Product Overview
Taoglas MAT Multiband Antenna Boards can be used as a reference design or an actual embedded antenna for telematics devices in applications such as fleet management, asset tracking, and security/surveillance. Taoglas MAT.500.A Embedded Antenna Board combines LTE MIMO antennas, Wi-Fi MIMO antennas, plus GPS/GLONASS, and Iridium 1621MHz antennas. The board comes with six IPEX connectors and 1.37mm coax cables for LTE, Wi-Fi, GPS/GLONASS, and Iridium 1621MHz.
Similar Items
Features & Specs
- MAT.500.A
- 2x LTE MIMO 698-960MHz/1710-2170MHz/2490-2690MHz/3300-3600MHz
- 2x Wi-Fi MIMO 2.4GHz/5.8GHz
- 1x GPS-GLONASS antenna
- 1x Satellite L-band 1621MHz antenna
- Worldwide 4G bands, including 3G and 2G
- 157.32mm x 103.19mm x 30mm dimensions
- IPEX connectors, 1.37mm cables
Documentation
Customer Reviews
MAT.500A 6in1 Integrated Antenna Board
COM-18144
Stock and Customer Discounts
$95.95 retail price.
Available Discounts
- $91.15 | 25+ units
- $86.36 | 100+ units
