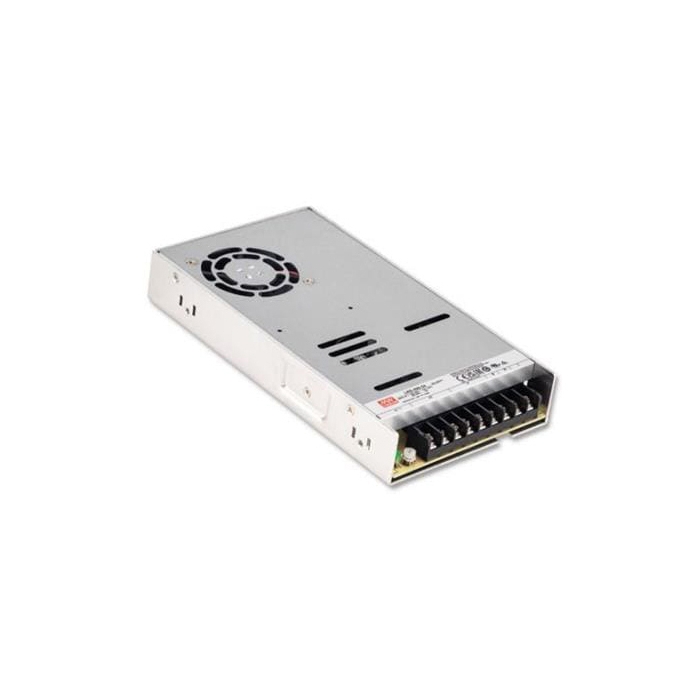

MEAN WELL LRS-450W, 24V Power Supply
Switching Power Supplies are single-output enclosed power supplies with a low 1U (41mm) profile design.
Product Overview
MEAN WELL LRS-450 450W and LRS-600 600W Switching Power Supplies are single-output enclosed power supplies with a low 1U (41mm) profile design. Adopting a 115VAC to 230VAC input (select by switch), the LRS-450 and LRS-600 devices provide an output voltage line of 5V, 12V, 15V, 24V, 27V, 36V, and 48V. In addition to the high efficiency of up to 92% with built-in long-life fans, the power supplies operate from -20°C to +65°C (LRS-600) or +70°C (LRS-450) with a full load. Features include complete protection functions, 5G anti-vibration capability, and an outward fan cooling design. The MEAN WELL LRS-450 450W and LRS-600 600W Switching Power Supplies comply with international safety regulations and provide a high price-to-performance power supply solution for various industrial applications.
Features & Specs
- Output Voltage-Channel 1: 24 VDC
- Number of Outputs: 1 Output
- Output Power: 450 W
- Open Frame/Enclosed: Enclosed
- Input Voltage: 90 VAC to 132 VAC, 180 VAC to 264 VAC, 255 VDC to 370 VDC
- Output Current-Channel 1: 18.8 A
- Mounting Style: Chassis
- Length: 225 mm
- Width: 124 mm
- Height: 35 mm
- Series: LRS-450
- Brand: MEAN WELL
- Input Frequency: 47 Hz to 63 Hz
- Load Regulation: Regulated
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: - 20 C
Documentation
Customer Reviews
Stock and Customer Discounts
Available Discounts
- $64.55 | 25+ units
- $61.16 | 100+ units
