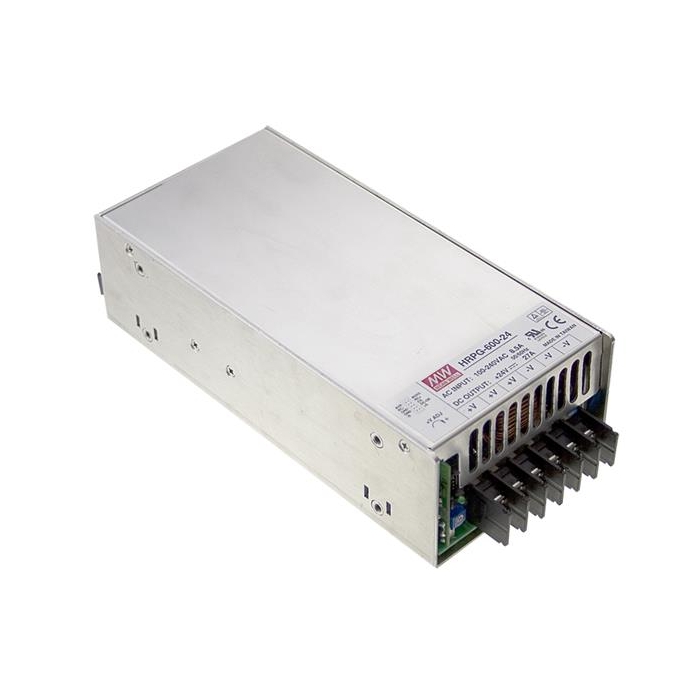

MEAN WELL Switching Power Supply - 624W, 48V, 13A
PRT-17572
MEAN WELL Switching Power Supply - 624W, 48V, 13A
SKU: PRT-17572
The HRP series include a built-in remote sense function, 1U low profile design, and short-circuit, overload, over-voltage, and over-temperature protection.
Out of stock
SKU
PRT-17572
Product Overview
MEAN WELL HRP-150N, 300N, 600N Power Supplies offer a 12VDC to 48VDC voltage range, up to 53A rated current, and 47Hz to 63Hz frequency range. These modules feature high efficiency up to 89% and withstand a 300VAC surge input for up to 5 seconds. The HRP series include a built-in remote sense function, 1U low profile design, and short-circuit, overload, over-voltage, and over-temperature protection. MEAN WELL HRP-150N, 300N, 600N Power Supplies are ideal for industrial automation machinery, telecommunication equipment, and mechanical and electrical equipment.
Similar Items
Hookup Accessories
Features & Specs
- Output Voltage-Channel 1: 48 V
- Number of Outputs: 1 Output
- Output Power: 600 W
- Open Frame/Enclosed: Enclosed
- Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC
- Output Current-Channel 1: 13 A
- Industry: Industrial, Commercial
- Mounting Style: Chassis
- Length: 218 mm
- Width: 105 mm
- Height: 61.5 mm
- Series: HRP-600N
- Input Frequency: 47 Hz to 63 Hz
- Isolation Voltage: 500 VDC
- Type: Single Output with PFC Function
- Brand: MEAN WELL
- Load Regulation: Regulated
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: - 40 C
Documentation
Customer Reviews
MEAN WELL Switching Power Supply - 624W, 48V, 13A
PRT-17572
$213.95 retail price.
Available Discounts
- $203.25 | 25+ units
- $192.56 | 100+ units
