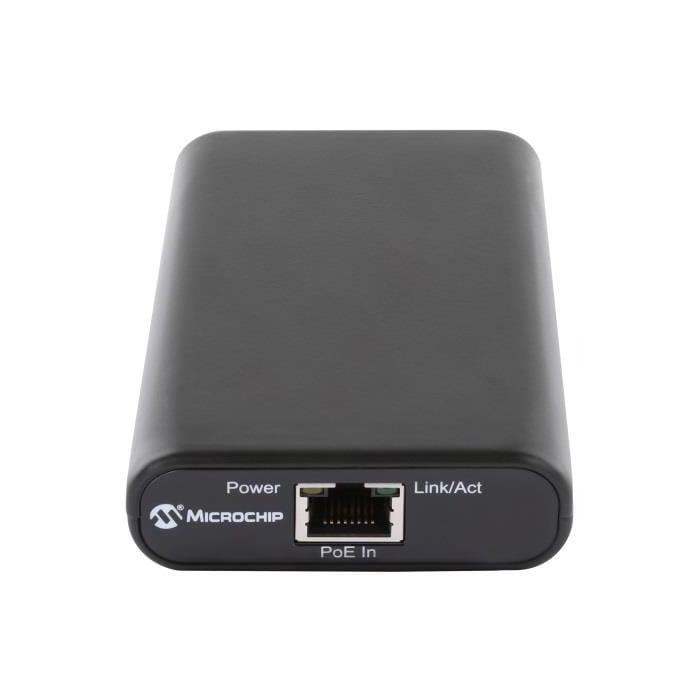

Microchip Technology PD-USB-DP60 Power & Data Adapter
The PD-USB-DP60 Adapter enables flexible installation of USB-C devices, removes the need for a close power outlet, and resolves limited USB cable length.
Product Overview
Microchip Technology PD-USB-DP60 PoE to USB-C® Power and Data Adapter connects IoT devices with a USB-C connector to Power over Ethernet (PoE) networks, allowing users to leverage the advantages of PoE and USB-C technologies.
The Microchip PD-USB-DP60 Adapter enables flexible installation of USB-C devices, removes the need for a close power outlet, and resolves limited USB cable length. The PoE source can be up to 328ft/100m from the USB-C device's location. A single Ethernet cable is needed while delivering up to 60W of USB power at the adapter's output.
The PD-USB-DP60 is compatible with USB2.0 and 3.1 and will automatically provide to the end device the exact amount of power it needs. The PD-USB-DP60 connects with small PCs/Next Unit of Computing (NUC), interactive information kiosks, smart monitors, tablets, laptops, cellphones, cameras, and other USB-C powered devices consuming up to 60W.
Features & Specs
- Mounting Style: Cable
- Number of Ports: 1 Port
- Input Voltage: 42 VDC to 57 VDC
- Output Voltage-Channel 1: 20 VDC
- Output Current-Channel 1: 3 A
- Output Power: 60 W
- Load Regulation: Not Regulated
- DC Output Connector: RJ45 Connector
- Data Rate: 1 Gb/s
- Approvals: EN-55035, FCC
- Length: 105.2 mm
- Width: 66.8 mm
- Height: 22.4 mm
- DC Output Cord Length: 30 cm
- Number of Outputs: 1 Output
- Product: PoE to USB-C Adapter
- Brand: Microchip Technology
- Maximum Operating Temperature: + 40 C
- Minimum Operating Temperature: 0 C
Documentation
Customer Reviews
Stock and Customer Discounts
Available Discounts
- $123.45 | 25+ units
- $116.96 | 100+ units
