This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

MIKROE 6DOF IMU 2 Click
SEN-18794

MIKROE 6DOF IMU 2 Click

SKU: SEN-18794
In stock
SKU
SEN-18794

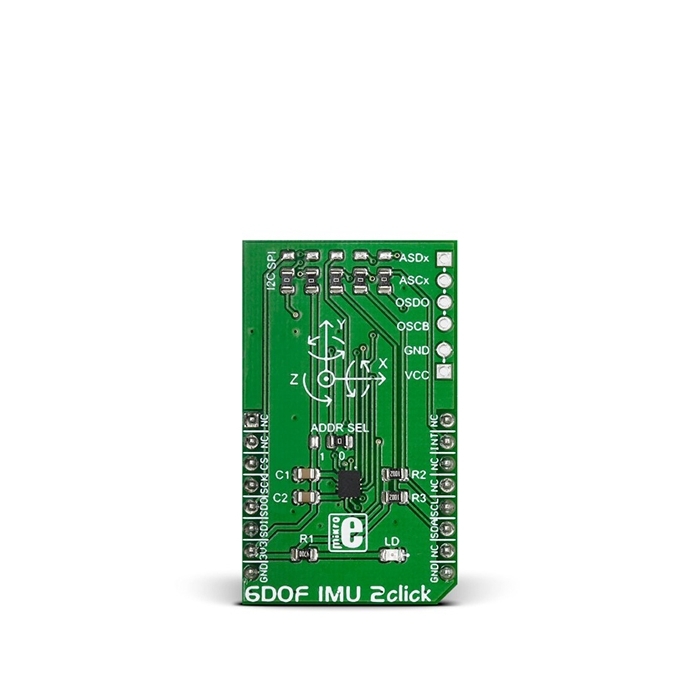

MIKROE 6DOF IMU 2 Click is a mikroBUS™ add-on board with Bosch's BMI160 low power inertial measurement unit (IMU).

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Product Overview

The IMU consists of a state-of-the-art 3-axis, low-g accelerometer, and a low-power 3-axis gyroscope, designed for 6-axis and 9-axis applications. The BMI160 also includes built-in power management unit (PMU) for advanced power management and power-saving modes, as well as allocated FIFO buffer of 1024 bytes for handling external sensor data.

6DOF IMU 2 click communicates with the target MCU through the I2C or SPI bus (user-selectable), with additional functionality provided by the INT pin (for enhanced autonomous motion detection).

The board is designed to use a 3.3 power supply only.

Features & Specs

  • Interface: GPIO, I2C, SPI
  • Compatibility: mikroBUS™
  • Dimensions: 42.9 x 25.4mm
  • Input Voltage: 3.3V

Customer Reviews

MIKROE 6DOF IMU 2 Click
MIKROE 6DOF IMU 2 Click SEN-18794

Stock and Customer Discounts

$24.95 retail price.

Available Discounts

  • $23.70 | 25+ units
  • $22.46 | 100+ units

Looking for even larger quantities?

Get in touch for Volume Pricing
