MIKROE Adapter Click

Product Overview

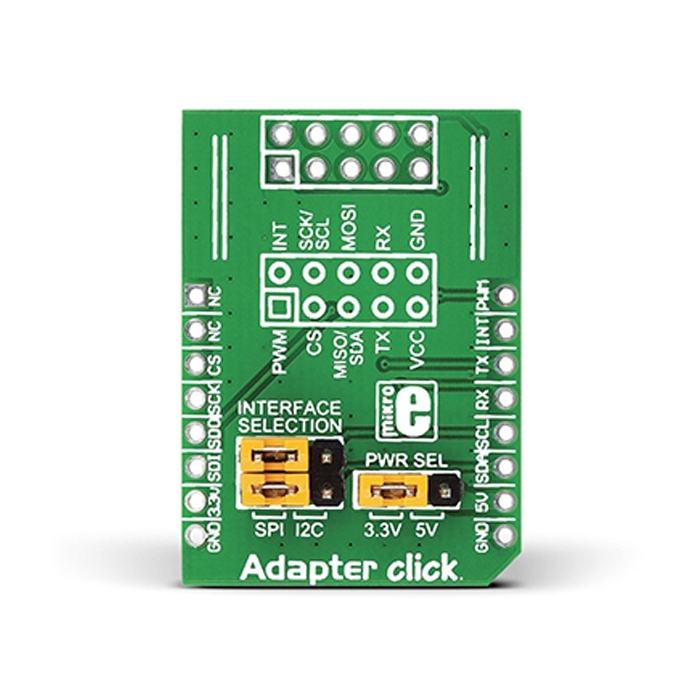

Adapter Click is a breakout board which simplifies connection of add-on boards with IDC10 headers to mikroBUS™ socket. There are two ways of establishing connection: using male or female IDC10 connectors. Both are provided with the package. You may solder male IDC10 header on the top side of Adapter Click and connect the add-on board directly or via IDC10 flat cable. In some cases, female header socket is a better choice. Solder it either on the top, or the bottom side, depending on which one is more convenient in given circumstances. Each mikroBUS™ line is covered, except AN and RST. There are two jumpers for SPI/I2C selection and one for selection of power supply range.
