Mikroe ADC 12 Click
DEV-17924

Mikroe ADC 12 Click

SKU: DEV-17924
Out of stock
SKU
DEV-17924

Mikroe ADC 12 Click is a general-purpose analog-to-digital converter that features the ADS7828 low-power Texas Instruments 12-bit data acquisition device.

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Product Overview

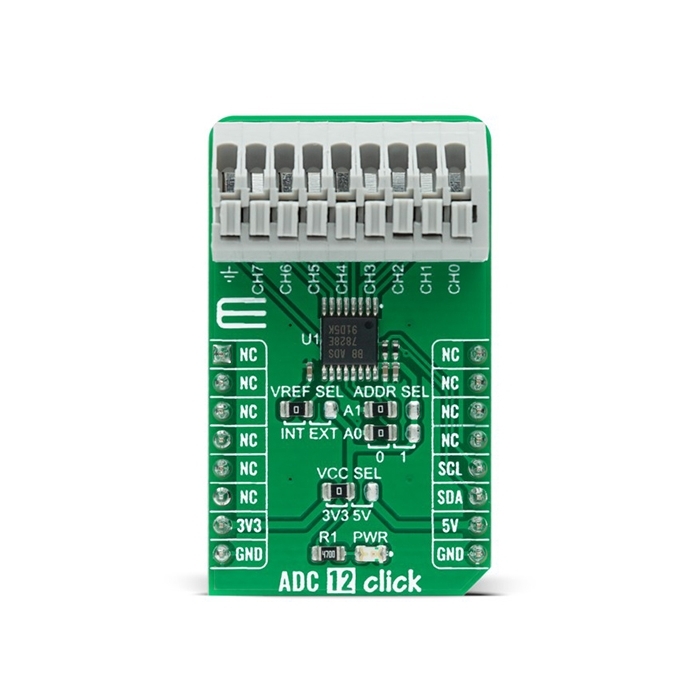

Mikroe ADC 12 Click is a general-purpose analog-to-digital converter that features the ADS7828 low-power Texas Instruments 12-bit data acquisition device. The device features a serial I2C interface and an 8-channel multiplexer. The A/D converter features a sample-and-hold amplifier and an internal, asynchronous clock. The board has a combination of an I2C serial interface, up to eight differential analog inputs, built-in reference with buffered output, and micro-power consumption. This makes it ideal for applications requiring the A/D converter to be close to the input source in remote locations and for applications requiring isolation.

Features & Specs

  • On-board modules
  • Texas Instruments ADS7828 low-power 12-bit data acquisition device that features a serial I2C interface and an 8-channel multiplexer
  • Low power consumption
  • 12-bit data acquisition device
  • 8-channel multiplexer
  • Internal voltage reference
  • I2C interface
  • mikroBUS compatibility
  • M (42.9mm x 25.4mm) click board size
  • 3.3V or 5V Input Voltage

Customer Reviews

Mikroe ADC 12 Click
Mikroe ADC 12 Click DEV-17924

Stock and Customer Discounts

$15.95 retail price.

Available Discounts

  • $15.15 | 25+ units
  • $14.36 | 100+ units

Looking for even larger quantities?

Get in touch for Volume Pricing
