MIKROE AlphaNum G Click

Name: MIKROE AlphaNum G Click
SKU: COM-20411
Price: 14.95 USD
Availability: OutOfStock

SKU: COM-20411

Out of stock

SKU

COM-20411

AlphaNum G Click is a simple solution for adding 14-segment alphanumeric display to your device.

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Overview

Product Overview

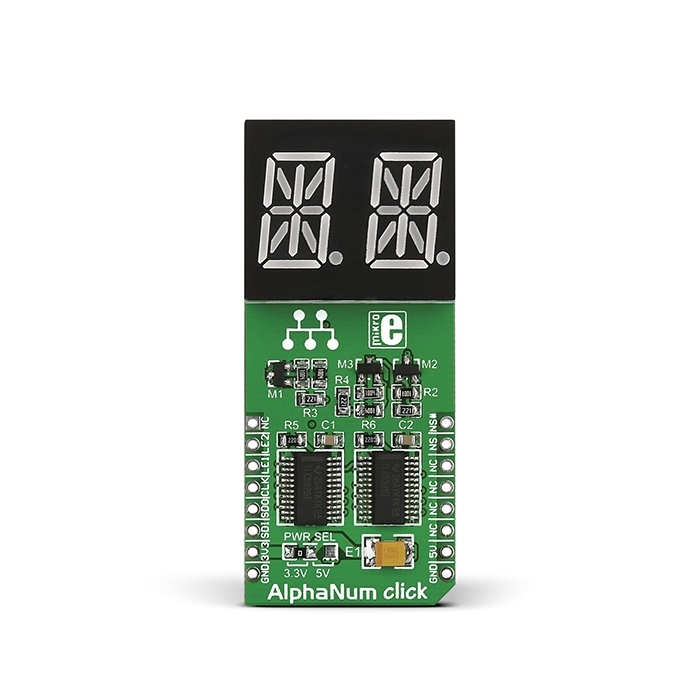

AlphaNum G Click is a simple solution for adding 14-segment alphanumeric display to your device. The board carries two TLC5926 16-bit Constant-Current LED sink Drivers as well as a dual character green LED 14-segment display (with two additional segments for commas). AlphaNum G Click communicates with the target board through mikroBUS™ RST, CS, SCK, MISO, MOSI, PWM and INT pins (marked here as LE2, LE1, CLK, DOUT, DIN, NUMSEL and NUMSEL# respectively). The board is designed to use either a 3.3V or 5V power supply.
