MIKROE BIG 7-SEG R Click

SKU: COM-20299

In stock

SKU

COM-20299

BIG 7-SEG R Click is what you need if you want to add a seven-segment LED display to your project.

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Overview

Product Overview

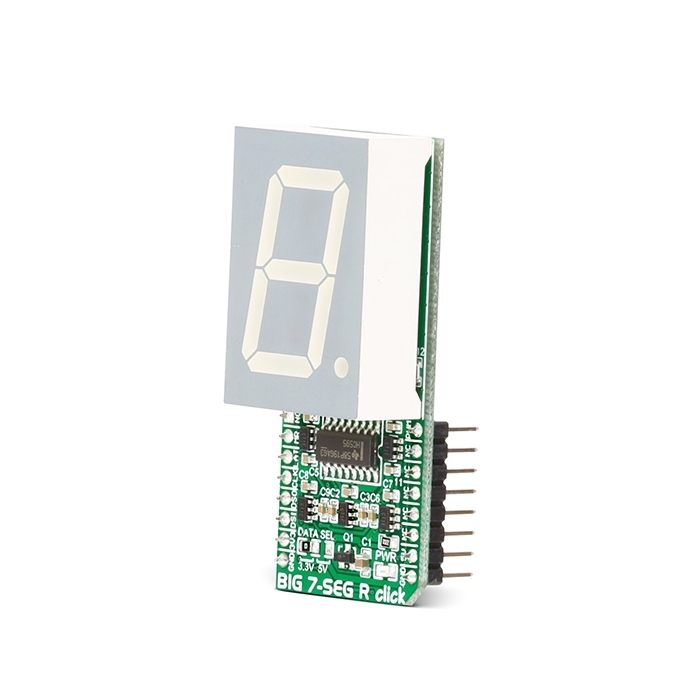

BIG 7-SEG R Click is what you need if you want to add a seven-segment LED display to your project. This Click features an SC10-21SRWA seven-segment display. Communication between the MCU and the SC10-21SRWA display is established via serial-IN, parallel-OUT shift register 74HC595 IC.

The Click runs on either 3.3V of 5V power supply and communicates with the target MCU over an SPI interface.

DISPLAY

The Click displays letters, numbers and symbols in highly readable form. It can be used in any simple interface and combined with other Click boards™. The color of the displayed character is red, as the R in the name of the Click states.

LIGHT INTENSITY

The light intensity on the display is controlled via the PWM pin on the board.
