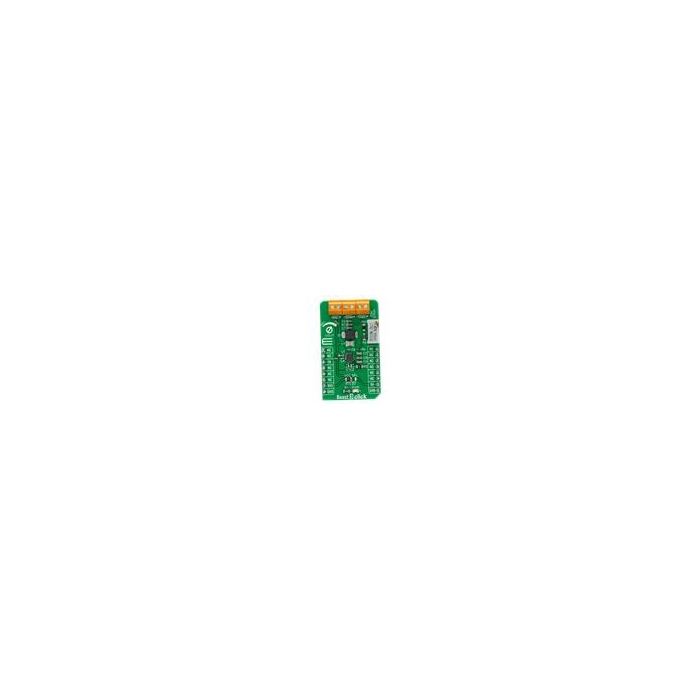

Mikroe Boost 3 Click
COM-17611
Mikroe Boost 3 Click
SKU: COM-17611
Out of stock
SKU
COM-17611
Mikroe Boost 3 Click has a boost converter with an integrated current mirror function.
Product Overview
Mikroe Boost 3 Click has a boost converter with an integrated current mirror function. The board features the Texas Instruments TPS61391 700kHz pulse-width modulating (PWM) Step-Up converter with a 70V switch FET with an input voltage up to 5.5V. The TPS61391 includes an accurate current mirror, with two selectable gain options (1:5 or 4:5). It provides high optical-power protection with an additional FET in series with the APD power path, with the typical response time of 0.5µs.
Features & Specs
- On-board modules
- Texas Instruments TPS61391 700kHz pulse-width modulating (PWM) Step-Up converter with a 70V switch FET with an input voltage up to 5.5V
- An under-voltage lockout
- High optical power protection
- Wide output voltage range from 20V to 70V
- Current mirror function
- GPIO interface
- mikroBUS compatibility
- M (42.9mm x 25.4mm) click board size
- 3.3V or 5V input voltage
