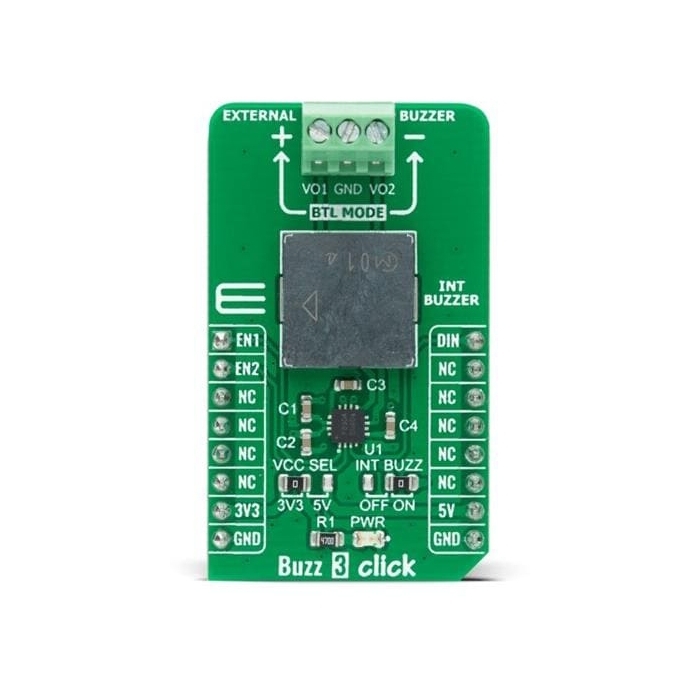

Mikroe BUZZ 3 Click
DEV-17919
Mikroe BUZZ 3 Click
SKU: DEV-17919
Out of stock
SKU
DEV-17919
Mikroe BUZZ 3 Click features a sounder driver that produces higher volume with a lower current.
Product Overview
Mikroe BUZZ 3 Click features a sounder driver that produces higher volume with a lower current. The BUZZ 3 features the Diodes Incorporated PAM8904 piezo-sounder driver with an integrated Multi-Mode charge pump boost converter. The PAM8904 can drive a sounder load of up to 15nF with its wide input signal range of 20Hz to 300kHz. It provides a 9V output, enables the selection of three different piezo sound pressure levels, and keeps current consumption low. It also extends battery life by employing built-in automatic shutdown and wake-up functions.
Features & Specs
- On-board modules
- Diodes Incorporated PAM8904 piezo-sounder driver with an integrated Multi-Mode charge pump boost converter
- Low power consumption
- High flexibility
- Built-in automatic shutdown and wake-up features
- Higher sound pressure level sound output
- Integrated charge-pump boost converter
- Interface
- GPIO, PWM
- Compatibility
- mikroBUS
- Click board size
- M (42.9mm x 25.4mm)
- Input Voltage
- 3.3V or 5V
Customer Reviews
Mikroe BUZZ 3 Click
DEV-17919
Stock and Customer Discounts
$9.95 retail price.
Available Discounts
- $9.45 | 25+ units
- $8.96 | 100+ units
