Mikroe Current 3 Click
SEN-17686
Mikroe Current 3 Click
SKU: SEN-17686
Out of stock
SKU
SEN-17686

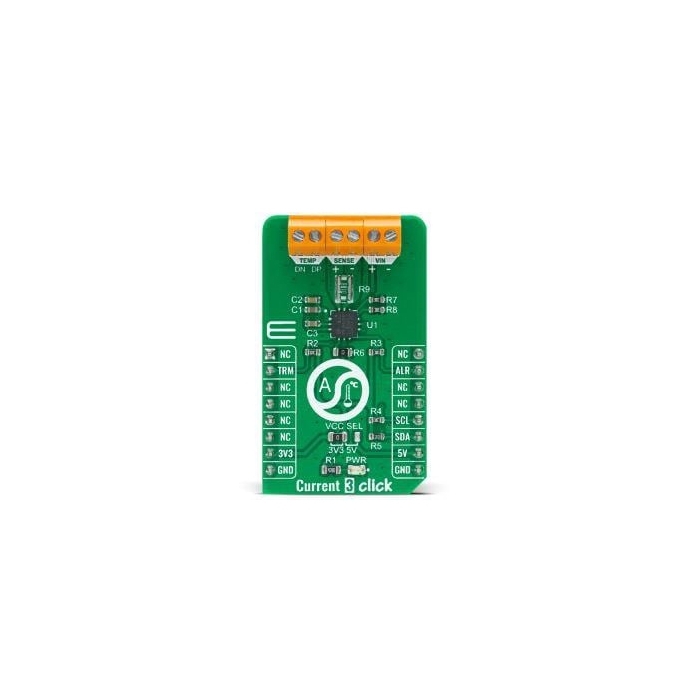

Mikroe Current 3 Click features the Microchip EMC1702 high-side current sensing device with a temperature measurement function.
Product Overview
Mikroe Current 3 Click features the Microchip EMC1702 high-side current sensing device with a temperature measurement function. The board is ideal for applications like current sense and temperature monitoring. The EMC1702 measures the voltage developed across a sense resistor to represent the high-side current of a battery or voltage regulator. It also contains bidirectional peak detection circuitry to flag current spikes with programmable time duration, magnitude threshold, and a channel for external temperature measurement.
Similar Items
Features & Specs
- On-board modules
- Based on the Microchip EMC1702 high-side current sensing device with precision voltage and temperature measurement capabilities
- High-side current sensor
- Temperature monitoring
- Hardware set peak detector, accuracy, and more
- I2C interface
- mikroBUS compatibility
- M (42.9mm x 25.4mm) click board size
- 3.3V or 5V input voltage
Customer Reviews
Mikroe Current 3 Click
SEN-17686
Stock and Customer Discounts
$9.95 retail price.
Available Discounts
- $9.45 | 25+ units
- $8.96 | 100+ units
