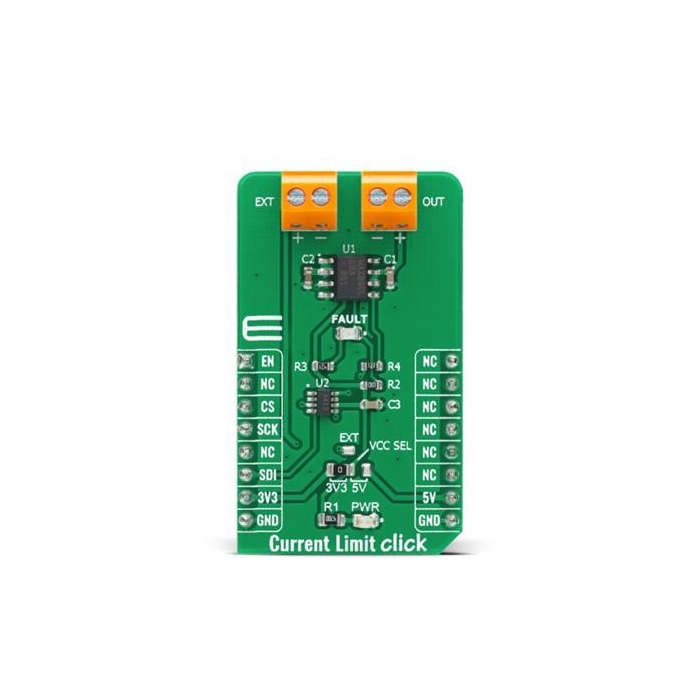

Mikroe Current Limit Click
Mikroe Current Limit Click contains a low-voltage, P-channel MOSFET power switch for high-side load switching applications.
Product Overview
Mikroe Current Limit Click contains a low-voltage, P-channel MOSFET power switch for high-side load switching applications. The board features the Maxim Integrated MAX890L low-resistance power switch with an adjustable, accurate current limit system, and thermal shutdown. Its internal current-limiting circuitry protects the input supply against overload. The thermal protection limits power dissipation. The maximum current limit is 1.2A and is programmed through a digital potentiometer MAX5401. The quiescent supply current has a low value of 10μA in the active state, while in its off state the supply current decreases to 0.1μA.
Features & Specs
- On-board modules
- Current Limit Click is based on the Maxim Integrated MAX890L high-side low-resistance P-channel switch with the adjustable, accurate current limit system, and thermal shutdown
- Low power consumption
- Programmable current limit
- Thermal shutdown
- Fault indicator output
- Low quiescent current
- SPI interface
- mikroBUS compatibility
- M (42.9mm x 25.4mm) click board size
- 3.3V or 5V, External input Voltage
