MIKROE DAC 2 Click

Name: MIKROE DAC 2 Click
SKU: DEV-20371
Price: 19.95 USD
Availability: OutOfStock

SKU: DEV-20371

Out of stock

SKU

DEV-20371

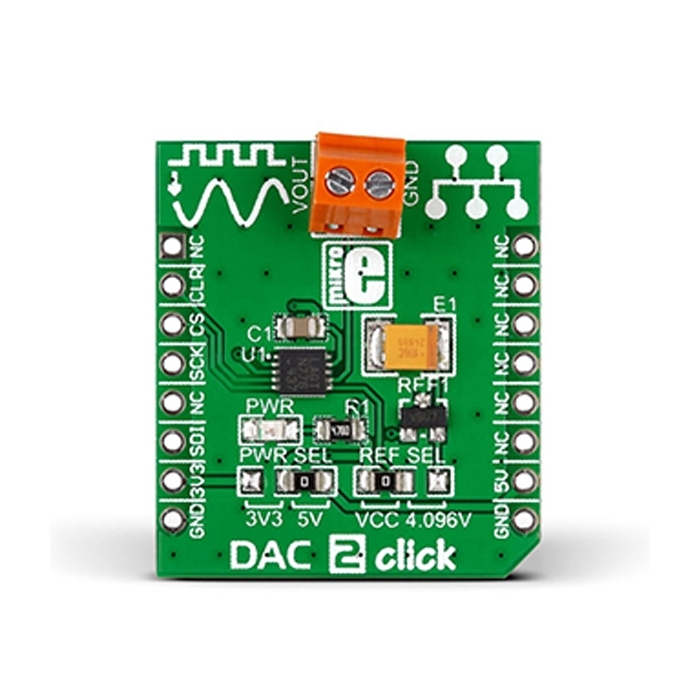

DAC 2 Click carries LTC2601, a 16-bit digital-to-analog converter from Analog Devices, along with voltage output screw terminals.

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Overview

Product Overview

DAC2 Click carries LTC2601, a 16-bit digital-to-analog converter from Analog Devices, along with voltage output screw terminals. The chip has high rail-to-rail output drives (±15mA, Min) and double-buffered data latches. The Click board™ communicates with the target MCU through the mikroBUS SPI interface with clock rates up to 50MHz. Additionally, the CLR pin, in place of default mikroBUS RST pin, clears all the registers. The board uses either a 3.3V or 5V power supply. You can also set the reference voltage either to VCC or 4.096V.
