MIKROE LED Ring R Click

Name: MIKROE LED Ring R Click
SKU: COM-20340
Price: 24.95 USD
Availability: OutOfStock

SKU: COM-20340

Out of stock

SKU

COM-20340

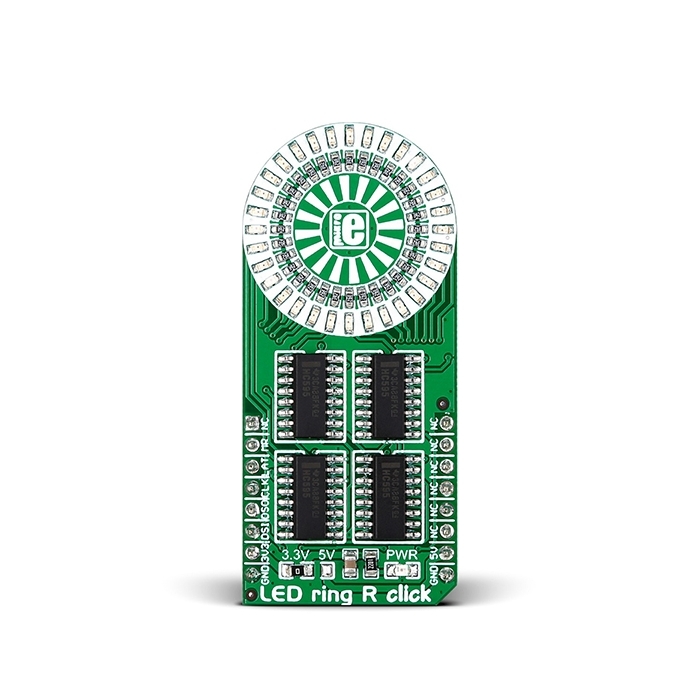

LED Ring R Click is a mikroBUS™ add-on board with a ring of 32 red LEDs driven by four 8-bit 74HC595 serial-in, parallel-out shift registers.

This product has been retired from our catalog and is no longer for sale. View the updated version below. N/A

Overview

Product Overview

LED Ring R Click is a mikroBUS™ add-on board with a ring of 32 red LEDs driven by four 8-bit 74HC595 serial-in, parallel-out shift registers. The ring is 25mm in diameter. The Click communicates with the target MCU through the mikroBUS™ SPI interface, with RST, CS, SCK, MISO and MOSI pins marked MR#, LAT, CLK, DSOUT, DSIN, respectively. Other LED colors will also be available. The board is designed to use either a 3.3V or 5V power supply only.
